DC-DC-Wandler
| Foto | Hersteller-Teil # | Verfügbarkeit | Preis | Menge | Datenblatt | Serie | Verpackung/Gehäuse | Verpackung | Produktstatus | Typ | Anzahl der Ausgänge | Spannung – Eingang (Max.) | Spannung – Ausgang 1 | Spannung - Ausgang 2 | Klasse | Spannung - Ausgang 3 | Spannung - Ausgang 4 | Spannung – Eingang (Min.) | Strom – Ausgang (Max) | Leistung (Watt) | Effizienz | Spannung - Isolierung | Qualifizierung | Betriebstemperatur | Anwendungen | Funktionen | Montageart | Größe/Abmessung | Lieferant Gerätepaket | Steuerungsfunktionen | Zulassungsstelle | Standardnummer |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

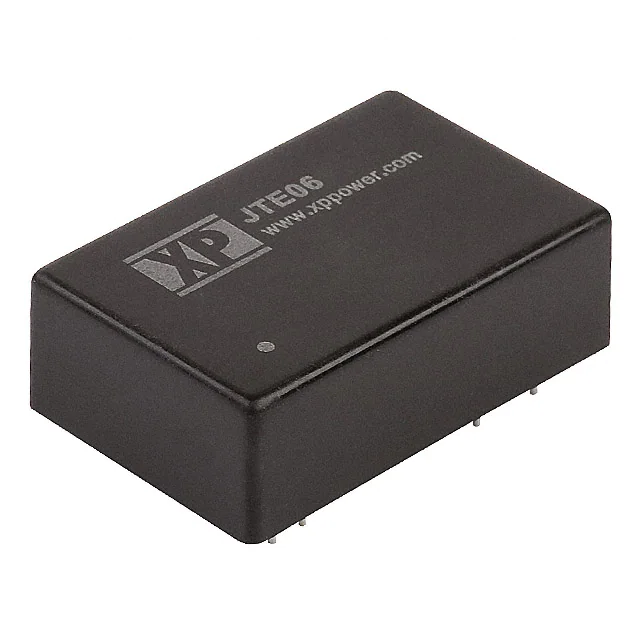

JTE0624D24DC DC CONVERTER +/-24V 6W |
810 | - |
|
Datenblatt |
JTE (6W) | 24-DIP Module, 8 Leads | Tube | Active | Isolated Module | 2 | 36V | 24V | -24V | - | - | - | 9V | 125mA, 125mA | 6 W | 82% | 1.5 kV | - | -40°C ~ 100°C | ITE (Commercial) | OCP, SCP, UVLO | Through Hole | 1.25" L x 0.80" W x 0.41" H (31.8mm x 20.3mm x 10.4mm) | - | - | - | 62368-1 |
|

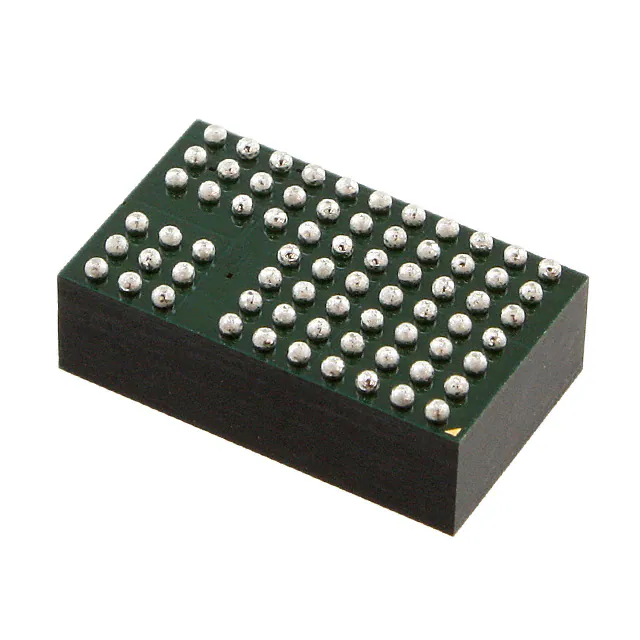

LTM8025IY#PBFDC DC CONVERTER 0.8-24V 72W |
3,581 | - |
|
Datenblatt |
µModule® | 70-BBGA Module | Tray | Active | Non-Isolated PoL Module | 1 | 36V | 0.8 ~ 24V | - | - | - | - | 3.6V | 3A | - | - | - | - | -40°C ~ 125°C | ITE (Commercial) | - | Surface Mount | 0.59" L x 0.35" W x 0.19" H (15.0mm x 9.0mm x 4.9mm) | 70-BGA (15x9) | - | - | - |
|
UVXS0606A0X3-SRZDC DC CNVRTR 0.6-5.5V 0.6-5.5V |
2,416 | - |
|
Datenblatt |
MicroDLynx™ | 28-SMD Module | Tape & Reel (TR) | Active | Non-Isolated PoL Module | 2 | 14.4V | 0.6 ~ 5.5V | 0.6 ~ 5.5V | - | - | - | 4.5V | 6A, 6A | - | 94.8% | - | - | -40°C ~ 85°C | ITE (Commercial) | Remote On/Off, OCP, OTP, OVP, UVLO | Surface Mount | 0.80" L x 0.45" W x 0.34" H (20.3mm x 11.4mm x 8.5mm) | - | Enable, Active Low | - | - |
|
RHV2-2424S/R20DC DC CONVERTER 24V 2W |
430 | - |
|
Datenblatt |
ECONOLINE RHV2 (2W) | 16-SIP Module, 4 Leads | Tube | Active | Isolated Module | 1 | 26.4V | 24V | - | - | - | - | 21.6V | 84mA | 2 W | 78% | 20 kV | - | -40°C ~ 85°C | ITE (Commercial), Laboratory | - | Through Hole | 1.77" L x 0.59" W x 0.67" H (45.0mm x 15.0mm x 17.0mm) | - | - | - | - |
|
BMR4732001/0016-15VIN; 0.6-5VOUT; 40A; NON-ISO |
104 | - |
|
Datenblatt |
BMR473 (100W) | 19-SIP Module | Tray | Active | Non-Isolated PoL Module, Digital | 1 | 15V | 0.6 ~ 5V | - | - | - | - | 6V | 40A | 200 W | 94.7% | - | - | -40°C ~ 125°C | ITE (Commercial) | Adjustable Output, PMBus™, Remote On/Off, Standby Output | Through Hole | 1.04" L x 0.35" W x 0.61" H (26.3mm x 8.8mm x 15.6mm) | - | - | UL | - |
|
DCR012405UDC DC CONVERTER 5V 1W |
185 | - |
|
Datenblatt |
DCR01 (1W) | 28-SOIC (0.295", 7.50mm Width), 12 Leads | Tube | Active | Isolated Module | 1 | 26.4V | 5V | - | - | - | - | 21.6V | 200mA | 1 W | - | 1 kV | - | -40°C ~ 85°C | ITE (Commercial) | Remote On/Off, OTP, SCP | Surface Mount | 0.70" L x 0.41" W x 0.10" H (17.9mm x 10.3mm x 2.5mm) | 12-SOP | Enable, Active High | - | - |
|
MGS62405DC DC CONVERTER 5V |
533 | - |
|
Datenblatt |
MGS (6W) | 7-SIP Module | Tube | Active | Isolated Module | 1 | 36V | 5V | - | - | - | - | 18V | 1.2A | - | 85% | 1.5 kV | - | -40°C ~ 85°C (With Derating) | ITE (Commercial) | Remote On/Off, OCP | Through Hole | 0.87" L x 0.37" W x 0.47" H (22.0mm x 9.5mm x 12.0mm) | - | - | - | - |
|
RS-1205S/H3DC DC CONVERTER 5V 2W |
758 | - |
|
Datenblatt |
ECONOLINE RS (2W) | 8-SIP Module, 7 Leads | Tube | Active | Isolated Module | 1 | 18V | 5V | - | - | - | - | 9V | 400mA | 2 W | 75% | 3 kV | - | -40°C ~ 85°C | ITE (Commercial), Medical | Remote On/Off, SCP | Through Hole | 0.86" L x 0.36" W x 0.44" H (21.8mm x 9.2mm x 11.1mm) | - | Enable, Active Low | - | - |
|
TRN 3-2415DC DC CONVERTER 24V 3W |
240 | - |
|
Datenblatt |
TRN 3 (3W) | 5-SIP Module, 4 Leads | Tube | Active | Isolated Module | 1 | 36V | 24V | - | - | - | - | 18V | 125mA | 3 W | 83% | 1.6 kV | - | -40°C ~ 85°C | ITE (Commercial) | SCP | Through Hole | 0.47" L x 0.30" W x 0.43" H (11.9mm x 7.7mm x 11.0mm) | - | - | - | - |
|
TEN 3-0523DC DC CONVERTER +/-15V 3W |
729 | - |
|
Datenblatt |
TEN 3 (3W) | 24-DIP Module, 8 Leads | Tube | Not For New Designs | Isolated Module | 2 | 9V | 15V | -15V | - | - | - | 4.5V | 100mA, 100mA | 3 W | 75% | 1.5 kV | - | -40°C ~ 85°C (With Derating) | ITE (Commercial) | SCP | Through Hole | 1.25" L x 0.80" W x 0.40" H (31.8mm x 20.3mm x 10.2mm) | - | - | CB, cCSAus | - |
|
RS3-0505S/H3DC DC CONVERTER 5V 3W |
330 | - |
|
Datenblatt |
ECONOLINE RS3 (3W) | 8-SIP Module, 7 Leads | Tube | Active | Isolated Module | 1 | 9V | 5V | - | - | - | - | 4.5V | 600mA | 3 W | 79% | 3 kV | - | -40°C ~ 71°C | ITE (Commercial), Medical | Remote On/Off, SCP | Through Hole | 0.86" L x 0.36" W x 0.44" H (21.8mm x 9.2mm x 11.1mm) | - | Enable, Active Low | - | - |
|
TMR 2-2422WIDC DC CONVERTER +/-12V 2W |
107 | - |
|
Datenblatt |
TMR 2WI (2W) | 9-SIP Module, 7 Leads | Tube | Active | Isolated Module | 2 | 36V | 12V | -12V | - | - | - | 9V | 85mA, 85mA | 2 W | 77% | 1.5 kV | - | -40°C ~ 85°C (With Derating) | ITE (Commercial) | Remote On/Off, SCP | Through Hole | 1.02" L x 0.37" W x 0.49" H (26.0mm x 9.3mm x 12.5mm) | - | - | - | - |
|
SCW12A-12DC DC CONVERTER 12V 12W |
472 | - |
|
Datenblatt |
SCW12 (12W) | 24-DIP Module, 8 Leads | Tube | Active | Isolated Module | 1 | 18V | 12V | - | - | - | - | 9V | 1A | 12 W | 82% | 1.5 kV | - | -25°C ~ 71°C (With Derating) | ITE (Commercial) | Remote On/Off, OCP, SCP | Through Hole | 1.25" L x 0.80" W x 0.48" H (31.8mm x 20.3mm x 12.2mm) | - | Enable, Active High | - | - |
|
RSO-2412DZDC DC CONVERTER +/-12V 1W |
741 | - |
|
Datenblatt |
ECONOLINE RSO (1W) | 8-SIP Module, 7 Leads | Tube | Active | Isolated Module | 2 | 36V | 12V | -12V | - | - | - | 9V | 42mA, 42mA | 1 W | 80% | 1 kV | - | -40°C ~ 85°C | ITE (Commercial) | Remote On/Off, SCP | Through Hole | 0.86" L x 0.36" W x 0.44" H (21.8mm x 9.2mm x 11.1mm) | - | Enable, Active Low | - | - |
|
|
RSO-2405DZDC DC CONVERTER +/-5V 1W |
209 | - |
|
Datenblatt |
ECONOLINE RSO (1W) | 8-SIP Module, 7 Leads | Tube | Active | Isolated Module | 2 | 36V | 5V | -5V | - | - | - | 9V | 100mA, 100mA | 1 W | 77% | 1 kV | - | -40°C ~ 85°C | ITE (Commercial) | Remote On/Off, SCP | Through Hole | 0.86" L x 0.36" W x 0.44" H (21.8mm x 9.2mm x 11.1mm) | - | Enable, Active Low | - | - |
|
|
RSO-0505DDC DC CONVERTER +/-5V 1W |
167 | - |
|
Datenblatt |
ECONOLINE RSO (1W) | 8-SIP Module, 7 Leads | Tube | Active | Isolated Module | 2 | 9V | 5V | -5V | - | - | - | 4.5V | 100mA, 100mA | 1 W | 75% | 1 kV | - | -40°C ~ 85°C | ITE (Commercial) | Remote On/Off, SCP | Through Hole | 0.86" L x 0.36" W x 0.44" H (21.8mm x 9.2mm x 11.1mm) | - | Enable, Active Low | - | - |
|
R-615.0PDC DC CONVERTER 5V 5W |
1,093 | - |
|
Datenblatt |
INNOLINE R-6xxx | 12-SIP Module | Tube | Active | Non-Isolated PoL Module | 1 | 32V | 5V | - | - | - | - | 9V | 1A | 5 W | 92% | - | - | -40°C ~ 85°C | ITE (Commercial) | Remote On/Off, SCP | Through Hole | 1.27" L x 0.36" W x 0.59" H (32.2mm x 9.1mm x 15.0mm) | - | Enable, Active High | - | - |
|

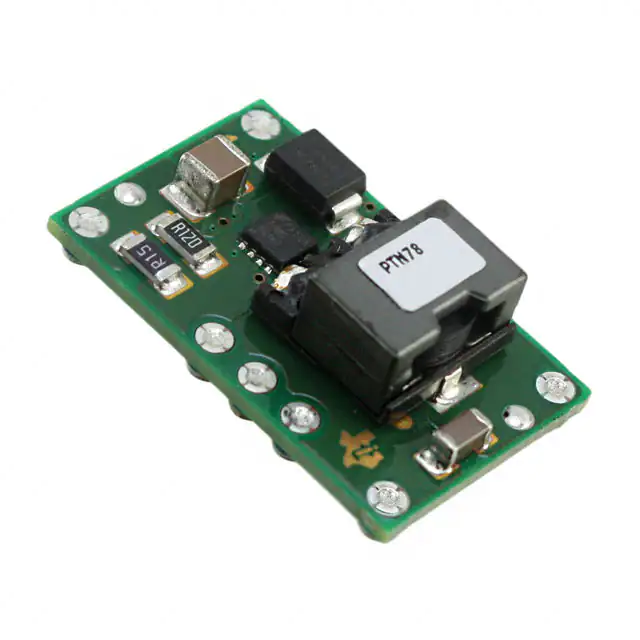

PTN78060WASDC DC CONVERTER 2.5-12.6V |
193 | - |
|
Datenblatt |
PTN78060W | 7-SMD Module | Tray | Active | Non-Isolated PoL Module | 1 | 36V | 2.5 ~ 12.6V | - | - | - | - | 7V | 3A | - | 94% | - | - | -40°C ~ 85°C | ITE (Commercial) | Remote On/Off, OCP, OTP, UVLO | Surface Mount | 1.00" L x 0.62" W x 0.38" H (25.4mm x 15.7mm x 9.7mm) | - | - | - | - |
|
|
AG7010DC DC CONVERTER 3 ~ 12.7V 127W |
726 | - |
|
Datenblatt |
AG7010 | 12-SMD Module | Tray | Active | Non-Isolated PoL Module | 1 | 24V | 3 ~ 12.7V | - | - | - | - | 8V | 10A | 127 W | 97% | - | - | -40°C ~ 85°C | ITE (Commercial) | Adjustable Output, PMBus™ | Surface Mount | 1.47" L x 0.57" W x 0.32" H (37.4mm x 14.4mm x 8.2mm) | - | - | - | - |
|

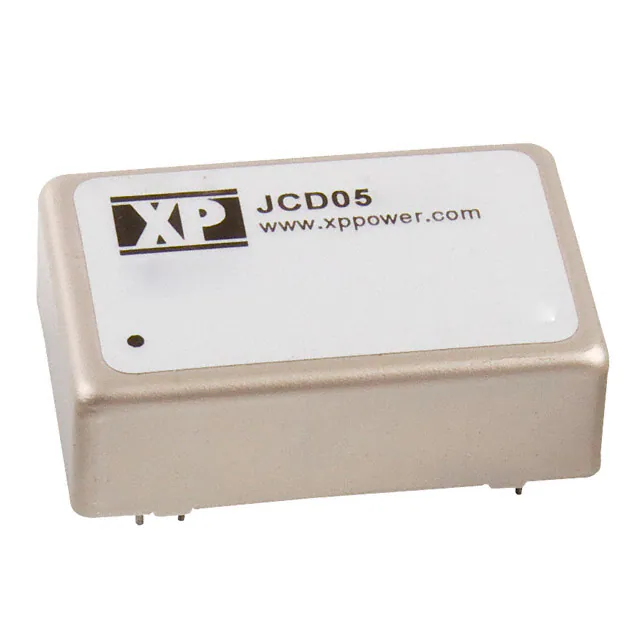

JCD0524S05DC DC CONVERTER 5V 5W |
1,546 | - |
|
Datenblatt |
JCD (5W) | 24-DIP Module, 7 Leads | Tube | Active | Isolated Module | 1 | 36V | 5V | - | - | - | - | 18V | 1A | 5 W | 80% | 1.6 kV | - | -40°C ~ 100°C | ITE (Commercial) | OCP, OVP, SCP | Through Hole | 1.25" L x 0.80" W x 0.41" H (31.8mm x 20.3mm x 10.4mm) | - | - | - | 62368-1 |
