DC-DC-Wandler
| Foto | Hersteller-Teil # | Verfügbarkeit | Preis | Menge | Datenblatt | Serie | Verpackung/Gehäuse | Verpackung | Produktstatus | Typ | Anzahl der Ausgänge | Spannung – Eingang (Max.) | Spannung – Ausgang 1 | Spannung - Ausgang 2 | Klasse | Spannung - Ausgang 3 | Spannung - Ausgang 4 | Spannung – Eingang (Min.) | Strom – Ausgang (Max) | Leistung (Watt) | Effizienz | Spannung - Isolierung | Qualifizierung | Betriebstemperatur | Anwendungen | Funktionen | Montageart | Größe/Abmessung | Lieferant Gerätepaket | Steuerungsfunktionen | Zulassungsstelle | Standardnummer |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
RP-2405SDC DC CONVERTER 5V 1W |
216 | - |
|
Datenblatt |
ECONOLINE RP (1W) | 7-SIP Module, 4 Leads | Tube | Active | Isolated Module | 1 | 26.4V | 5V | - | - | - | - | 21.6V | 200mA | 1 W | 72% | 5.2 kV | - | -40°C ~ 85°C | ITE (Commercial), Medical | SCP | Through Hole | 0.77" L x 0.28" W x 0.40" H (19.7mm x 7.1mm x 10.2mm) | - | - | - | - |
|
|
RP-0505DDC DC CONVERTER +/-5V 1W |
190 | - |
|
Datenblatt |
ECONOLINE RP (1W) | 7-SIP Module, 5 Leads | Tube | Active | Isolated Module | 2 | 5.5V | 5V | -5V | - | - | - | 4.5V | 100mA, 100mA | 1 W | 76% | 5.2 kV | - | -40°C ~ 85°C | ITE (Commercial), Medical | SCP | Through Hole | 0.77" L x 0.28" W x 0.40" H (19.7mm x 7.1mm x 10.2mm) | - | - | - | - |
|

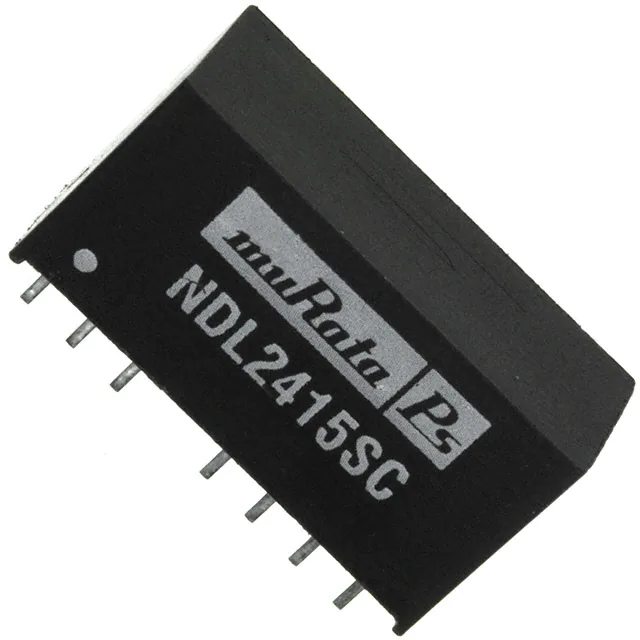

NDL2415SCDC DC CONVERTER 15V 2W |
140 | - |
|
Datenblatt |
NDL (2W) | 8-SIP Module, 7 Leads | Tube | Active | Isolated Module | 1 | 36V | 15V | - | - | - | - | 18V | 134mA | 2 W | 83% | 1 kV | - | -40°C ~ 85°C | ITE (Commercial) | - | Through Hole | 0.86" L x 0.36" W x 0.44" H (21.8mm x 9.1mm x 11.2mm) | - | - | - | - |
|
R24P15SDC DC CONVERTER 15V 1W |
1,259 | - |
|
Datenblatt |
ECONOLINE RxxPxx (1W) | 7-SIP Module, 4 Leads | Tube | Active | Isolated Module | 1 | 26.4V | 15V | - | - | - | - | 21.6V | 66mA | 1 W | 80% | 6.4 kV | - | -40°C ~ 90°C | ITE (Commercial), Medical | SCP | Through Hole | 0.77" L x 0.39" W x 0.49" H (19.7mm x 9.8mm x 12.5mm) | - | - | - | - |
|
R12P215SDC DC CONVERTER 15V 2W |
417 | - |
|
Datenblatt |
ECONOLINE RxxP2xx (2W) | 7-SIP Module, 4 Leads | Tube | Active | Isolated Module | 1 | 13.2V | 15V | - | - | - | - | 10.8V | 132mA | 2 W | 80% | 6.4 kV | - | -40°C ~ 85°C | ITE (Commercial), Medical | - | Through Hole | 0.77" L x 0.39" W x 0.49" H (19.7mm x 9.8mm x 12.5mm) | - | - | - | - |
|
TSR 2-24150DC DC CONVERTER 15V 30W |
294 | - |
|
Datenblatt |
TSR 2 | 3-SIP Module | Tube | Active | Linear Regulator Replacement | 1 | 36V | 15V | - | - | - | - | 18V | 2A | 30 W | 96% | - | - | -40°C ~ 85°C (With Derating) | ITE (Commercial) | OCP, SCP | Through Hole | 0.55" L x 0.30" W x 0.40" H (14.0mm x 7.5mm x 10.1mm) | - | - | - | - |
|
R05P23.3SDC DC CONVERTER 3.3V 2W |
202 | - |
|
Datenblatt |
ECONOLINE RxxP2xx (2W) | 7-SIP Module, 4 Leads | Tube | Active | Isolated Module | 1 | 5.5V | 3.3V | - | - | - | - | 4.5V | 600mA | 2 W | 70% | 6.4 kV | - | -40°C ~ 85°C | ITE (Commercial), Medical | - | Through Hole | 0.77" L x 0.39" W x 0.49" H (19.7mm x 9.8mm x 12.5mm) | - | - | - | - |
|
TSR 2-2425DC DC CONVERTER 2.5V 5W |
145 | - |
|
Datenblatt |
TSR 2 | 3-SIP Module | Tube | Active | Linear Regulator Replacement | 1 | 36V | 2.5V | - | - | - | - | 4.6V | 2A | 5 W | 89% | - | - | -40°C ~ 85°C (With Derating) | ITE (Commercial) | OCP, SCP | Through Hole | 0.55" L x 0.30" W x 0.40" H (14.0mm x 7.5mm x 10.1mm) | - | - | - | - |
|
RP-1212SDC DC CONVERTER 12V 1W |
1,290 | - |
|
Datenblatt |
ECONOLINE RP (1W) | 7-SIP Module, 4 Leads | Tube | Active | Isolated Module | 1 | 13.2V | 12V | - | - | - | - | 10.8V | 84mA | 1 W | 78% | 5.2 kV | - | -40°C ~ 85°C | ITE (Commercial), Medical | SCP | Through Hole | 0.77" L x 0.28" W x 0.40" H (19.7mm x 7.1mm x 10.2mm) | - | - | - | - |
|
R12P05SDC DC CONVERTER 5V 1W |
176 | - |
|
Datenblatt |
ECONOLINE RxxPxx (1W) | 7-SIP Module, 4 Leads | Tube | Active | Isolated Module | 1 | 13.2V | 5V | - | - | - | - | 10.8V | 200mA | 1 W | 75% | 6.4 kV | - | -40°C ~ 90°C | ITE (Commercial), Medical | SCP | Through Hole | 0.77" L x 0.39" W x 0.49" H (19.7mm x 9.8mm x 12.5mm) | - | - | - | - |
|
ADUM6020-5WBRIZISOPOWER 5KV, LOWEMI, 500MW PWR, |
313 | - |
|
Datenblatt |
IsoPower®, iCoupler® | 16-SOIC (0.295", 7.50mm Width) | Tube | Active | Isolated Module | 1 | 5.5V | 5V | - | - | - | - | 4.5V | 100mA | - | - | 5 kV | - | -40°C ~ 125°C | ITE (Commercial), Laboratory, Medical | - | Surface Mount | 0.50" L x 0.30" W x 0.10" H (12.8mm x 7.5mm x 2.6mm) | 16-SOIC | - | CSA, CQC, VDE, UL | 61010-1; 60601-1; 60950-1 |
|
DCP021212PDC DC CONVERTER 12V 2W |
114 | - |
|
Datenblatt |
DCP02 (2W) | 14-DIP (0.300", 7.62mm), 7 Leads | Bulk | Active | Isolated Module | 1 | 13.2V | 12V | - | - | - | - | 10.8V | 167mA | 2 W | 87% | 1 kV | - | -40°C ~ 85°C | ITE (Commercial) | OTP | Through Hole | 0.78" L x 0.33" W x 0.21" H (19.7mm x 8.3mm x 5.3mm) | 7-PDIP | - | - | - |
|
DCP021212U/1KDC DC CONVERTER 12V 2W |
451 | - |
|
Datenblatt |
DCP02 (2W) | 28-SOIC (0.295", 7.50mm Width), 12 Leads | Tape & Reel (TR) | Active | Isolated Module | 1 | 13.2V | 12V | - | - | - | - | 10.8V | 167mA | 2 W | 87% | 1 kV | - | -40°C ~ 85°C | ITE (Commercial) | OTP | Surface Mount | 0.71" L x 0.30" W x 0.10" H (18.1mm x 7.6mm x 2.7mm) | 12-SOP | - | - | - |
|

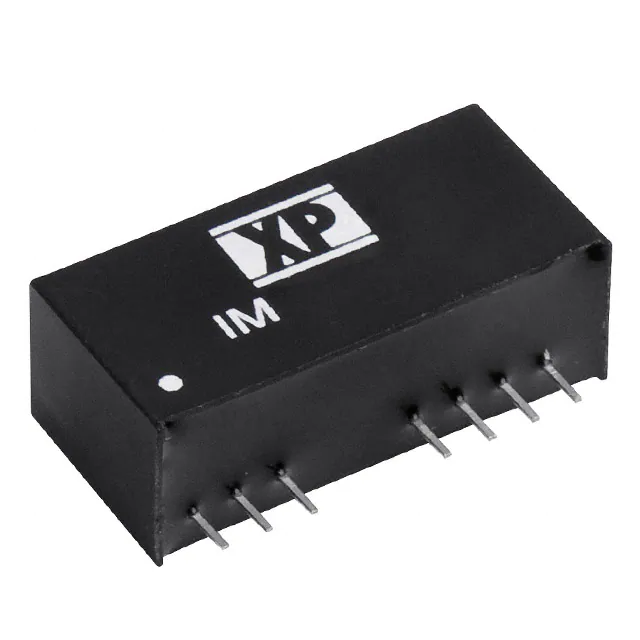

IM2403SADC DC CONVERTER 3.3V 2W |
3,092 | - |
|
Datenblatt |
IM (2W) | 9-SIP Module, 7 Leads | Tube | Active | Isolated Module | 1 | 36V | 3.3V | - | - | - | - | 9V | 500mA | 2 W | 75% | 1.5 kV | - | -40°C ~ 100°C | ITE (Commercial) | Remote On/Off, SCP | Through Hole | 1.02" L x 0.36" W x 0.49" H (26.0mm x 9.2mm x 12.5mm) | - | Enable, Active Low | - | 62368-1 |
|

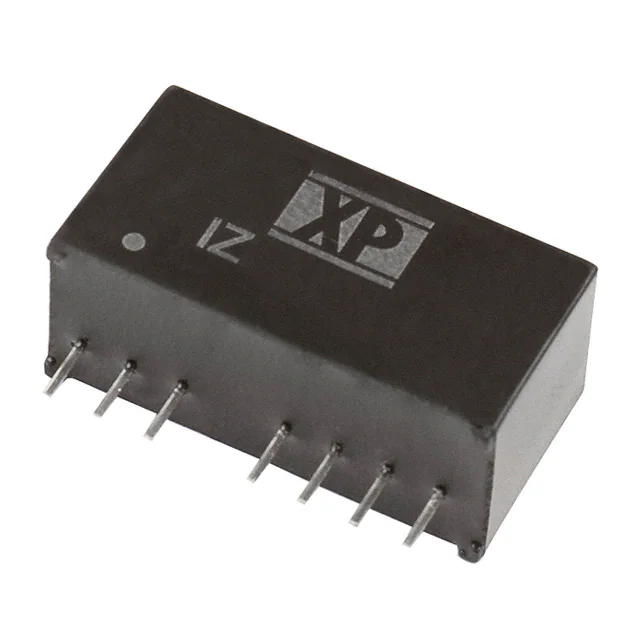

IZ0503SADC DC CONVERTER 3.3V 3W |
127 | - |
|
Datenblatt |
IZ (3W) | 8-SIP Module, 7 Leads | Tube | Active | Isolated Module | 1 | 9V | 3.3V | - | - | - | - | 4.5V | 700mA | 3 W | 74% | 1.6 kV | - | -40°C ~ 100°C | ITE (Commercial) | Remote On/Off, SCP | Through Hole | 0.86" L x 0.36" W x 0.44" H (21.9mm x 9.2mm x 11.1mm) | - | Enable, Active Low | - | 62368-1 |
|
|
RP-0515S/PDC DC CONVERTER 15V 1W |
4,340 | - |
|
Datenblatt |
ECONOLINE RP (1W) | 7-SIP Module, 4 Leads | Tube | Active | Isolated Module | 1 | 5.5V | 15V | - | - | - | - | 4.5V | 66mA | 1 W | 80% | 5.2 kV | - | -40°C ~ 85°C | ITE (Commercial), Medical | SCP | Through Hole | 0.77" L x 0.28" W x 0.40" H (19.7mm x 7.1mm x 10.2mm) | - | - | - | - |
|
TMR 1-2411SMDC DC CONVERTER 5V 1W |
369 | - |
|
Datenblatt |
TMR 1SM (1W) | 14-SMD Module, 7 Leads | Tube | Active | Isolated Module | 1 | 36V | 5V | - | - | - | - | 18V | 200mA | 1 W | 79% | 1.5 kV | - | -40°C ~ 82°C (With Derating) | ITE (Commercial) | Remote On/Off, OCP, SCP | Surface Mount | 0.74" L x 0.54" W x 0.34" H (18.9mm x 13.7mm x 8.7mm) | Module | - | CB, CSA | - |
|
|
IZ1215SDC DC CONVERTER +/-15V 3W |
554 | - |
|
Datenblatt |
IZ (3W) | 8-SIP Module, 7 Leads | Tube | Active | Isolated Module | 2 | 18V | 15V | -15V | - | - | - | 9V | 100mA | 3 W | 82% | 1.6 kV | - | -40°C ~ 100°C | ITE (Commercial) | Remote On/Off, SCP | Through Hole | 0.86" L x 0.36" W x 0.44" H (21.9mm x 9.2mm x 11.1mm) | - | Enable, Active Low | - | 62368-1 |
|
|
IZ2405SDC DC CONVERTER +/-5V 3W |
297 | - |
|
Datenblatt |
IZ (3W) | 8-SIP Module, 7 Leads | Tube | Active | Isolated Module | 2 | 36V | 5V | -5V | - | - | - | 18V | 300mA | 3 W | 80% | 1.6 kV | - | -40°C ~ 100°C | ITE (Commercial) | Remote On/Off, SCP | Through Hole | 0.86" L x 0.36" W x 0.44" H (21.9mm x 9.2mm x 11.1mm) | - | Enable, Active Low | - | 62368-1 |
|
|
RP-1515DDC DC CONVERTER +/-15V 1W |
919 | - |
|
Datenblatt |
ECONOLINE RP (1W) | 7-SIP Module, 5 Leads | Tube | Active | Isolated Module | 2 | 16.5V | 15V | -15V | - | - | - | 13.5V | 33mA, 33mA | 1 W | 82% | 5.2 kV | - | -40°C ~ 85°C | ITE (Commercial), Medical | SCP | Through Hole | 0.77" L x 0.28" W x 0.40" H (19.7mm x 7.1mm x 10.2mm) | - | - | - | - |
