Bürstenlose DC-Lüfter (BLDC)
| Foto | Hersteller-Teil # | Verfügbarkeit | Preis | Menge | Datenblatt | Serie | Verpackung | Produktstatus | Spannung - Nenn | Größe/Abmessung | Luftstrom | Statischer Druck | Lager Typ | Gewicht | Lüftertyp | Funktionen | Breite | Geräusch | Leistung (Watt) | Zulassungsstelle | U/min | Betriebstemperatur | Anschluss | Schutzart |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
109R0824L4011FAN AXIAL 80X25MM 24VDC WIRE |
79 | - |
|
Datenblatt |
San Ace 80 | Box | Active | 24VDC | Square - 80mm L x 80mm H | 23.0 CFM (0.644m³/min) | 0.059 in H2O (14.7 Pa) | Ball | 0.243 lb (110.22 g) | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 25.00mm | 20.0dB(A) | 960 mW | CSA, TUV, UL | 1850 RPM | -4 ~ 158°F (-20 ~ 70°C) | 3 Wire Leads | - |
|
|
08020SA-24K-EA-00FAN AXIAL 80X20MM 24VDC WIRE |
10 | - |
|
Datenblatt |
08020SA | Box | Active | 24VDC | Square - 80mm L x 80mm H | 31.1 CFM (0.871m³/min) | 0.110 in H2O (27.4 Pa) | Ball | - | Tubeaxial | Auto Restart | 20.00mm | 31.0dB(A) | 1.44 W | - | 2900 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
|
08020SA-12K-EA-00FAN AXIAL 80X20MM 12VDC WIRE |
80 | - |
|
Datenblatt |
08020SA | Box | Active | 12VDC | Square - 80mm L x 80mm H | 31.1 CFM (0.871m³/min) | 0.140 in H2O (34.9 Pa) | Ball | - | Tubeaxial | Auto Restart | 20.00mm | 31.0dB(A) | 840 mW | - | 2900 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
|
08020SA-12M-EA-00FAN AXIAL 80X20MM 12VDC WIRE |
9 | - |
|
Datenblatt |
08020SA | Box | Active | 12VDC | Square - 80mm L x 80mm H | 39.9 CFM (1.12m³/min) | 0.210 in H2O (52.3 Pa) | Ball | - | Tubeaxial | Auto Restart | 20.00mm | 37.5dB(A) | 1.56 W | - | 3700 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
|
FFB0924EHE-R00FAN AXIAL 92X38MM 24VDC WIRE |
89 | - |
|
Datenblatt |
FFB | Bulk | Active | 24VDC | Square - 92mm L x 92mm H | 110.2 CFM (3.09m³/min) | 0.665 in H2O (165.6 Pa) | Ball | 0.437 lb (198.00 g) | Tubeaxial | Locked Rotor Sensor | 38.00mm | 55.0dB(A) | 12 W | CE, CSA, UL, VDE | 4800 RPM | 14 ~ 140°F (-10 ~ 60°C) | 3 Wire Leads | - |
|

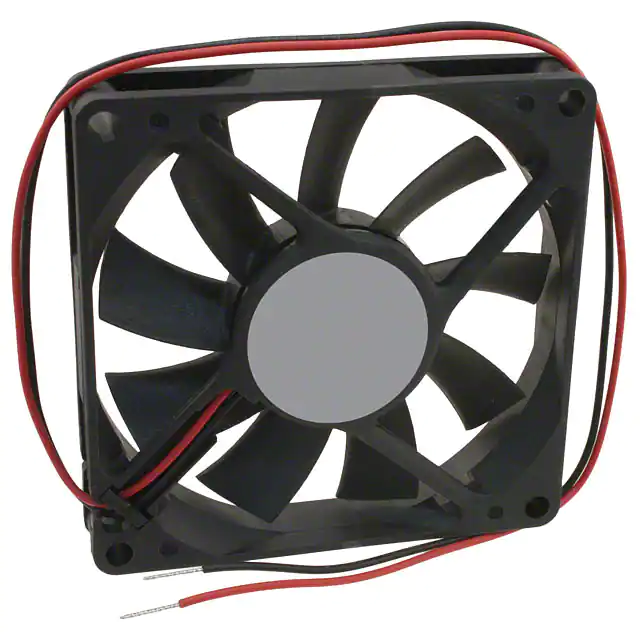

AFB0812HHBFAN AXIAL 80X15MM 12VDC WIRE |
46 | - |
|
Datenblatt |
AFB | Bulk | Active | 12VDC | Square - 80mm L x 80mm H | 35.7 CFM (1.00m³/min) | 0.159 in H2O (39.6 Pa) | Ball | 0.128 lb (58.06 g) | Tubeaxial | Locked Rotor Protection | 15.00mm | 37.0dB(A) | 1.92 W | CE, CSA, UL, VDE | 3400 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
|
DC0922524M2B-2T0FAN 92X25MM 24VDC |
68 | - |
|
Datenblatt |
- | Bulk | Active | 24VDC | Square - 92mm L x 92mm H | 52.0 CFM (1.46m³/min) | 0.170 in H2O (42.3 Pa) | Ball | - | Tubeaxial | Locked Rotor Protection | 25.00mm | 34.0dB(A) | 3.36 W | CE, cURus | 2850 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
FFB0424HHNFAN AXIAL 40X28MM 24VDC WIRE |
52 | - |
|
Datenblatt |
FFB | Box | Active | 24VDC | Square - 40mm L x 40mm H | 13.2 CFM (0.370m³/min) | 0.370 in H2O (92.2 Pa) | Ball | 0.071 lb (32.21 g) | Tubeaxial | Locked Rotor Protection | 28.00mm | 41.0dB(A) | 1.92 W | CE, CSA, UL, VDE | 8000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
|
9A0824M4D01FAN AXIAL 80X25MM 24VDC WIRE |
75 | - |
|
Datenblatt |
San Cooler 80 | Box | Active | 24VDC | Square - 80mm L x 80mm H | 29.3 CFM (0.820m³/min) | 0.090 in H2O (22.4 Pa) | Ball | 0.199 lb (90.26 g) | Tubeaxial | Locked Rotor Sensor | 25.00mm | 23.0dB(A) | 1.2 W | CSA, TUV, UL | 2350 RPM | -4 ~ 158°F (-20 ~ 70°C) | 3 Wire Leads | - |
|
|
9A0812F4D011FAN AXIAL 80X25MM 12VDC WIRE |
61 | - |
|
Datenblatt |
San Cooler 80 | Box | Active | 12VDC | Square - 80mm L x 80mm H | 32.5 CFM (0.910m³/min) | 0.114 in H2O (28.4 Pa) | Ball | 0.199 lb (90.26 g) | Tubeaxial | Locked Rotor Sensor | 25.00mm | 26.0dB(A) | 1.32 W | CSA, TUV, UL | 2600 RPM | -4 ~ 158°F (-20 ~ 70°C) | 3 Wire Leads | - |
|
|
9A0824H402FAN AXIAL 80X25MM 24VDC WIRE |
30 | - |
|
Datenblatt |
San Cooler 80 | Box | Active | 24VDC | Square - 80mm L x 80mm H | 36.4 CFM (1.02m³/min) | 0.142 in H2O (35.4 Pa) | Ball | 0.199 lb (90.26 g) | Tubeaxial | Locked Rotor Protection | 25.00mm | 29.0dB(A) | 1.68 W | CSA, TUV, UL | 2900 RPM | -4 ~ 158°F (-20 ~ 70°C) | 2 Wire Leads | - |
|
|
9A0624S4D01FAN AXIAL 60X25MM 24VDC WIRE |
30 | - |
|
Datenblatt |
San Cooler 60 | Box | Active | 24VDC | Square - 60mm L x 60mm H | 23.0 CFM (0.644m³/min) | 0.228 in H2O (56.8 Pa) | Ball | 0.176 lb (80.00 g) | Tubeaxial | Locked Rotor Sensor | 25.00mm | 33.0dB(A) | 1.92 W | CSA, TUV, UL | 4600 RPM | -4 ~ 158°F (-20 ~ 70°C) | 3 Wire Leads | - |
|
9A0624F401FAN AXIAL 60X25MM 24VDC WIRE |
8 | - |
|
Datenblatt |
San Cooler 60 | Box | Active | 24VDC | Square - 60mm L x 60mm H | 15.5 CFM (0.434m³/min) | 0.118 in H2O (29.4 Pa) | Ball | 0.176 lb (80.00 g) | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 25.00mm | 24.0dB(A) | 1.2 W | CSA, TUV, UL | 3200 RPM | -4 ~ 158°F (-20 ~ 70°C) | 3 Wire Leads | - |
|
|
9A0912H4D01FAN AXIAL 92X25MM 12VDC WIRE |
32 | - |
|
Datenblatt |
San Cooler 92 | Box | Active | 12VDC | Square - 92mm L x 92mm H | 51.2 CFM (1.43m³/min) | 0.177 in H2O (44.1 Pa) | Ball | 0.222 lb (100.7 g) | Tubeaxial | Locked Rotor Sensor | 25.00mm | 33.0dB(A) | 2.52 W | CSA, TUV, UL | 3150 RPM | -4 ~ 158°F (-20 ~ 70°C) | 3 Wire Leads | - |
|
|
109P0624H6D01FAN AXIAL 60X20MM 24VDC WIRE |
87 | - |
|
Datenblatt |
San Ace 60 | Box | Active | 24VDC | Square - 60mm L x 60mm H | 14.8 CFM (0.414m³/min) | 0.128 in H2O (31.8 Pa) | Ball | 0.199 lb (90.26 g) | Tubeaxial | Locked Rotor Sensor | 20.00mm | 31.0dB(A) | 1.68 W | CSA, TUV, UL | 4200 RPM | -4 ~ 158°F (-20 ~ 70°C) | 3 Wire Leads | - |
|
|
109P0524A7D01FAN AXIAL 52X15MM 24VDC WIRE |
90 | - |
|
Datenblatt |
San Ace 52 | Box | Active | 24VDC | Square - 52mm L x 52mm H | 13.2 CFM (0.370m³/min) | 0.280 in H2O (69.7 Pa) | Ball | 0.122 lb (55.34 g) | Tubeaxial | Locked Rotor Sensor | 15.00mm | 36.0dB(A) | 2.64 W | CSA, TUV, UL | 6800 RPM | -4 ~ 140°F (-20 ~ 60°C) | 3 Wire Leads | - |
|
|
9S0924F4021FAN AXIAL 92X25MM 24VDC WIRE |
49 | - |
|
Datenblatt |
San Ace 92 | Box | Active | 24VDC | Square - 92mm L x 92mm H | 44.5 CFM (1.25m³/min) | 0.120 in H2O (29.9 Pa) | Ball | 0.222 lb (100.7 g) | Tubeaxial | Locked Rotor Protection | 25.00mm | 27.0dB(A) | 2.16 W | CSA, TUV, UL | 2650 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
|
109P0624J7D01FAN AXIAL 60X15MM 24VDC WIRE |
40 | - |
|
Datenblatt |
San Ace 60 | Box | Active | 24VDC | Square - 60mm L x 60mm H | 21.5 CFM (0.602m³/min) | 0.347 in H2O (86.4 Pa) | Ball | 0.133 lb (60.33 g) | Tubeaxial | Locked Rotor Sensor | 15.00mm | 44.0dB(A) | 3.36 W | CSA, TUV, UL | 6200 RPM | -4 ~ 140°F (-20 ~ 60°C) | 3 Wire Leads | - |
|

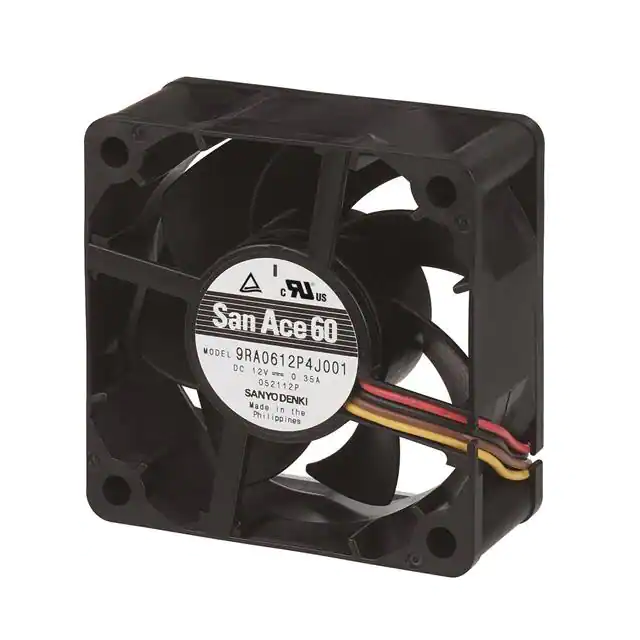

9RA0612P4S001FAN |
80 | - |
|
Datenblatt |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
109P0405H602FAN AXIAL 40X20MM BALL 5VDC WIRE |
93 | - |
|
Datenblatt |
San Ace 40 | Box | Active | 5VDC | Square - 40mm L x 40mm H | 8.0 CFM (0.224m³/min) | 0.264 in H2O (65.7 Pa) | Ball | 0.101 lb (45.81 g) | Tubeaxial | - | 20.00mm | 33.0dB(A) | 1.6 W | CSA, TUV, UL | 8000 RPM | -4 ~ 158°F (-20 ~ 70°C) | 2 Wire Leads | - |
