Bürstenlose DC-Lüfter (BLDC)
| Foto | Hersteller-Teil # | Verfügbarkeit | Preis | Menge | Datenblatt | Serie | Verpackung | Produktstatus | Spannung - Nenn | Größe/Abmessung | Luftstrom | Statischer Druck | Lager Typ | Gewicht | Lüftertyp | Funktionen | Breite | Geräusch | Leistung (Watt) | Zulassungsstelle | U/min | Betriebstemperatur | Anschluss | Schutzart |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
9S0912F4D011FAN AXIAL 92X25MM 12VDC WIRE |
78 | - |
|
Datenblatt |
San Ace 92 | Box | Active | 12VDC | Square - 92mm L x 92mm H | 44.5 CFM (1.25m³/min) | 0.120 in H2O (29.9 Pa) | Ball | 0.222 lb (100.7 g) | Tubeaxial | Locked Rotor Sensor | 25.00mm | 27.0dB(A) | 1.68 W | CSA, TUV, UL | 2650 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | - |
|
|
109P0424G3D0140X28MM 24V DC LCKRTRSNS |
19 | - |
|
Datenblatt |
San Ace 40 | Box | Active | 24VDC | Square - 40mm L x 40mm H | - | - | Ball | - | Tubeaxial | Locked Rotor Sensor | 28.00mm | 42.0dB(A) | - | - | 11500 RPM | -4 ~ 140°F (-20 ~ 60°C) | 3 Wire Leads | - |
|
|
109P0412M601FAN AXIAL 40X20MM 12VDC WIRE |
73 | - |
|
Datenblatt |
San Ace 40 | Box | Active | 12VDC | Square - 40mm L x 40mm H | 4.8 CFM (0.134m³/min) | 0.106 in H2O (26.4 Pa) | Ball | 0.101 lb (45.81 g) | Tubeaxial | Speed Sensor (Tach) | 20.00mm | 24.0dB(A) | 720 mW | CSA, TUV, UL | 5000 RPM | -4 ~ 158°F (-20 ~ 70°C) | 3 Wire Leads | - |
|

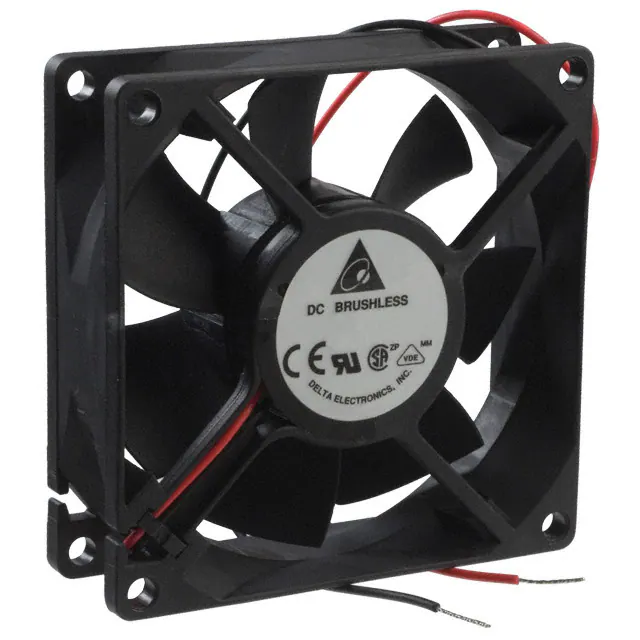

AFB0812VHFAN AXIAL 80X25.4MM 12VDC WIRE |
70 | - |
|
Datenblatt |
AFB | Bulk | Active | 12VDC | Square - 80mm L x 80mm H | 42.0 CFM (1.18m³/min) | 0.217 in H2O (54.1 Pa) | Ball | 0.176 lb (80.00 g) | Tubeaxial | Locked Rotor Protection | 25.40mm | 38.0dB(A) | 3.12 W | CE, CSA, UL, VDE | 3600 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
|
AFB0824MFAN AXIAL 80X25.4MM 24VDC WIRE |
69 | - |
|
Datenblatt |
AFB | Bulk | Active | 24VDC | Square - 80mm L x 80mm H | 31.4 CFM (0.879m³/min) | 0.129 in H2O (32.1 Pa) | Ball | 0.176 lb (80.00 g) | Tubeaxial | Locked Rotor Protection | 25.40mm | 28.0dB(A) | 1.44 W | CE, CSA, UL, VDE | 2700 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
109P0405J601FAN AXIAL 40X20MM BALL 5VDC WIRE |
65 | - |
|
Datenblatt |
San Ace 40 | Box | Active | 5VDC | Square - 40mm L x 40mm H | 9.9 CFM (0.277m³/min) | 0.396 in H2O (98.6 Pa) | Ball | 0.101 lb (45.81 g) | Tubeaxial | Speed Sensor (Tach) | 20.00mm | 39.0dB(A) | 2.3 W | CSA, TUV, UL | 9800 RPM | -4 ~ 158°F (-20 ~ 70°C) | 3 Wire Leads | - |
|
|
109P0412H6D01FAN AXIAL 40X20MM 12VDC WIRE |
57 | - |
|
Datenblatt |
San Ace 40 | Box | Active | 12VDC | Square - 40mm L x 40mm H | 8.0 CFM (0.224m³/min) | 0.264 in H2O (65.7 Pa) | Ball | 0.101 lb (45.81 g) | Tubeaxial | Locked Rotor Sensor | 20.00mm | 33.0dB(A) | 1.32 W | CSA, TUV, UL | 8000 RPM | -4 ~ 158°F (-20 ~ 70°C) | 3 Wire Leads | - |
|

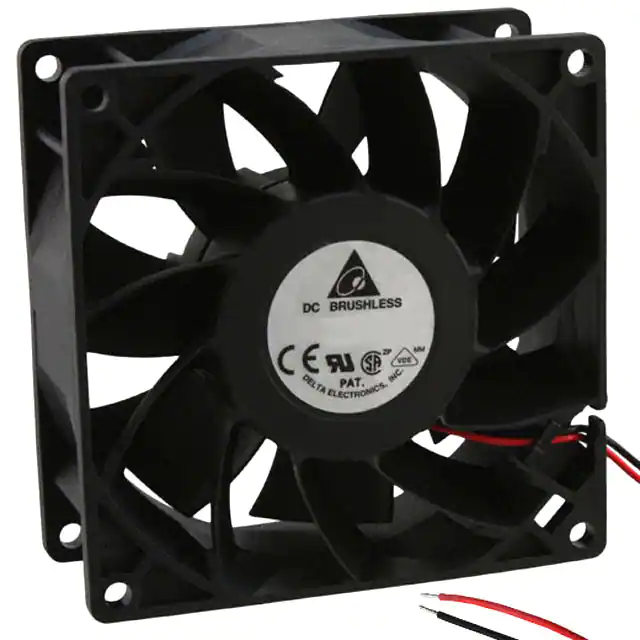

FFB0912VHEFAN AXIAL 92X38MM 12VDC WIRE |
86 | - |
|
Datenblatt |
FFB | Bulk | Active | 12VDC | Square - 92mm L x 92mm H | 85.5 CFM (2.39m³/min) | 0.406 in H2O (101.1 Pa) | Ball | 0.437 lb (198.00 g) | Tubeaxial | Locked Rotor Protection | 38.00mm | 47.5dB(A) | 6 W | CE, CSA, UL, VDE | 3800 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
9RA0824M40021FAN |
80 | - |
|
Datenblatt |
San Ace 80 | Bulk | Active | 24VDC | Square - 80mm L x 80mm H | - | - | Ball | - | Tubeaxial | Locked Rotor Protection | 25.00mm | - | - | cURus, TUV | - | - | 2 Wire Leads | - |
|
|
109P0405M6D01FAN AXIAL 40X20MM BALL 5VDC WIRE |
70 | - |
|
Datenblatt |
San Ace 40 | Box | Active | 5VDC | Square - 40mm L x 40mm H | 4.8 CFM (0.134m³/min) | 0.106 in H2O (26.4 Pa) | Ball | 0.101 lb (45.81 g) | Tubeaxial | Locked Rotor Sensor | 20.00mm | 24.0dB(A) | 600 mW | CSA, TUV, UL | 5000 RPM | -4 ~ 158°F (-20 ~ 70°C) | 3 Wire Leads | - |
|
|
109P0405H6D01FAN AXIAL 40X20MM BALL 5VDC WIRE |
51 | - |
|
Datenblatt |
San Ace 40 | Box | Active | 5VDC | Square - 40mm L x 40mm H | 8.0 CFM (0.224m³/min) | 0.264 in H2O (65.7 Pa) | Ball | 0.101 lb (45.81 g) | Tubeaxial | Locked Rotor Sensor | 20.00mm | 33.0dB(A) | 1.6 W | CSA, TUV, UL | 8000 RPM | -4 ~ 158°F (-20 ~ 70°C) | 3 Wire Leads | - |
|

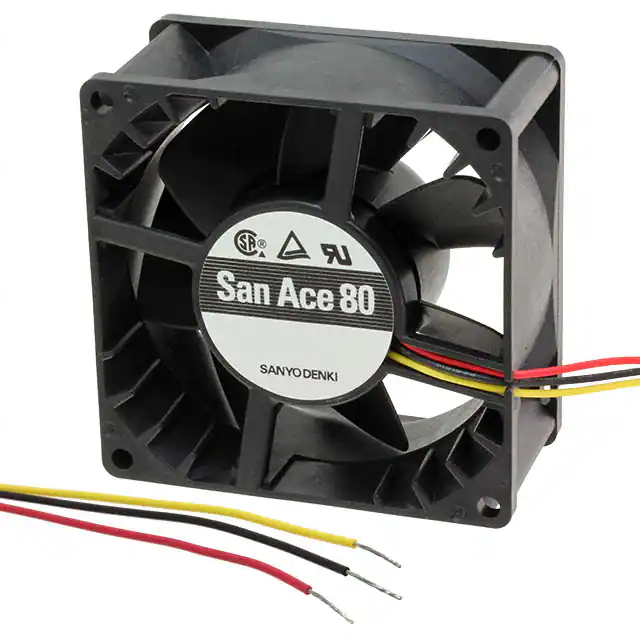

109R0824F4011FAN AXIAL 80X25MM 24VDC WIRE |
63 | - |
|
Datenblatt |
San Ace 80 | Box | Active | 24VDC | Square - 80mm L x 80mm H | 32.5 CFM (0.910m³/min) | 0.114 in H2O (28.4 Pa) | Ball | 0.243 lb (110.22 g) | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 25.00mm | 26.0dB(A) | 1.44 W | CSA, TUV, UL | 2600 RPM | -4 ~ 158°F (-20 ~ 70°C) | 3 Wire Leads | - |
|
|
9GA0812M700280X15MM, DC 12V, HIGH PERF., LOW |
45 | - |
|
Datenblatt |
San Ace 80 | Box | Active | 12VDC | Square - 80mm L x 80mm H | - | - | Ball | - | Tubeaxial | Locked Rotor Protection | 15.00mm | - | - | cURus, TUV | - | - | 2 Wire Leads | - |
|
|
109R0624D4011FAN AXIAL 60X25MM 24VDC WIRE |
23 | - |
|
Datenblatt |
San Ace 60 | Box | Active | 24VDC | Square - 60mm L x 60mm H | 25.4 CFM (0.711m³/min) | 0.295 in H2O (73.5 Pa) | Ball | 0.199 lb (90.26 g) | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 25.00mm | 37.0dB(A) | 2.88 W | CSA, TUV, UL | 5150 RPM | -4 ~ 158°F (-20 ~ 70°C) | 3 Wire Leads | - |
|

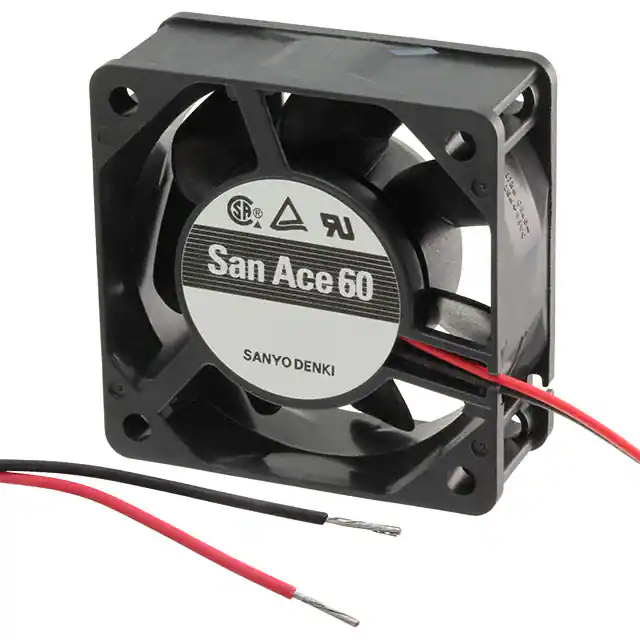

109R0612G4021FAN AXIAL 60X25MM 12VDC WIRE |
78 | - |
|
Datenblatt |
San Ace 60 | Box | Active | 12VDC | Square - 60mm L x 60mm H | 27.5 CFM (0.770m³/min) | 0.351 in H2O (87.3 Pa) | Ball | 0.199 lb (90.26 g) | Tubeaxial | Locked Rotor Protection | 25.00mm | 39.0dB(A) | 2.88 W | CSA, TUV, UL | 5600 RPM | -4 ~ 158°F (-20 ~ 70°C) | 2 Wire Leads | - |
|
|
109R0812M401FAN AXIAL 80X25MM 12VDC WIRE |
68 | - |
|
Datenblatt |
San Ace 80 | Box | Active | 12VDC | Square - 80mm L x 80mm H | 29.3 CFM (0.820m³/min) | 0.090 in H2O (22.4 Pa) | Ball | 0.243 lb (110.22 g) | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 25.00mm | 23.0dB(A) | 1.08 W | CSA, TUV, UL | 2350 RPM | -4 ~ 158°F (-20 ~ 70°C) | 3 Wire Leads | - |
|
FFB0424HNFAN AXIAL 40X28MM 24VDC WIRE |
63 | - |
|
Datenblatt |
FFB | Bulk | Active | 24VDC | Square - 40mm L x 40mm H | 10.6 CFM (0.297m³/min) | 0.248 in H2O (61.8 Pa) | Ball | 0.071 lb (32.21 g) | Tubeaxial | Locked Rotor Protection | 28.00mm | 36.0dB(A) | 1.44 W | CE, CSA, UL, VDE | 6500 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|

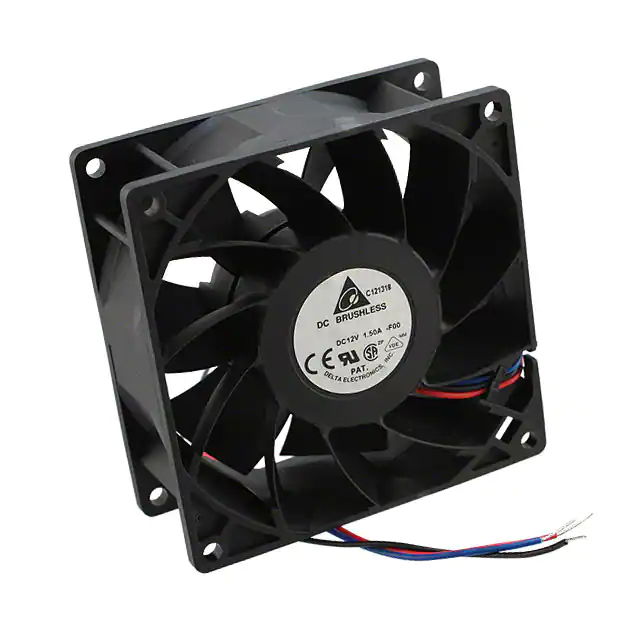

FFB0912EHE-F00FAN AXIAL 92X38MM 12VDC WIRE |
14 | - |
|
Datenblatt |
FFB | Bulk | Active | 12VDC | Square - 92mm L x 92mm H | 110.2 CFM (3.09m³/min) | 0.665 in H2O (165.6 Pa) | Ball | 0.437 lb (198.00 g) | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 38.00mm | 55.0dB(A) | 12 W | CE, CSA, UL, VDE | 4800 RPM | 14 ~ 140°F (-10 ~ 60°C) | 3 Wire Leads | - |
|
|
109R0624S4D011FAN AXIAL 60X25MM 24VDC WIRE |
80 | - |
|
Datenblatt |
San Ace 60 | Box | Active | 24VDC | Square - 60mm L x 60mm H | 23.0 CFM (0.644m³/min) | 0.228 in H2O (56.8 Pa) | Ball | 0.199 lb (90.26 g) | Tubeaxial | Locked Rotor Sensor | 25.00mm | 33.0dB(A) | 1.92 W | CSA, TUV, UL | 4600 RPM | -4 ~ 158°F (-20 ~ 70°C) | 3 Wire Leads | - |
|
|
109P0648H601FAN AXIAL 60X20MM 48VDC WIRE |
70 | - |
|
Datenblatt |
San Ace 60 | Box | Active | 48VDC | Square - 60mm L x 60mm H | 19.4 CFM (0.543m³/min) | 0.212 in H2O (52.8 Pa) | Ball | 0.199 lb (90.26 g) | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 20.00mm | 41.0dB(A) | 3.36 W | CSA, TUV, UL | 5600 RPM | -4 ~ 158°F (-20 ~ 70°C) | 3 Wire Leads | - |
