Bürstenlose DC-Lüfter (BLDC)
| Foto | Hersteller-Teil # | Verfügbarkeit | Preis | Menge | Datenblatt | Serie | Verpackung | Produktstatus | Spannung - Nenn | Größe/Abmessung | Luftstrom | Statischer Druck | Lager Typ | Gewicht | Lüftertyp | Funktionen | Breite | Geräusch | Leistung (Watt) | Zulassungsstelle | U/min | Betriebstemperatur | Anschluss | Schutzart |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
8318HLFAN AXIAL 80X32MM 48VDC WIRE |
12 | - |
|
Datenblatt |
8300 | Bulk | Active | 48VDC | Square - 80mm L x 80mm H | 39.5 CFM (1.11m³/min) | - | Ball | - | Tubeaxial | Locked Rotor Protection | 32.00mm | 43.0dB(A) | 4.3 W | CE, CSA, UL, VDE | 4200 RPM | -4 ~ 167°F (-20 ~ 75°C) | 2 Wire Leads | - |
|
9GA1224G40011FAN AXIAL 120X25.4MM 24VDC WIRE |
14 | - |
|
Datenblatt |
San Ace 120 | Bulk | Active | 24VDC | Square - 120mm L x 120mm H | 134.3 CFM (3.76m³/min) | 1.470 in H2O (366.2 Pa) | Ball | 0.617 lb (280.00 g) | Tubeaxial | Speed Sensor (Tach) | 25.40mm | 57.0dB(A) | 11.28 W | cURus, TUV | 6400 RPM | -4 ~ 158°F (-20 ~ 70°C) | 3 Wire Leads | - |
|

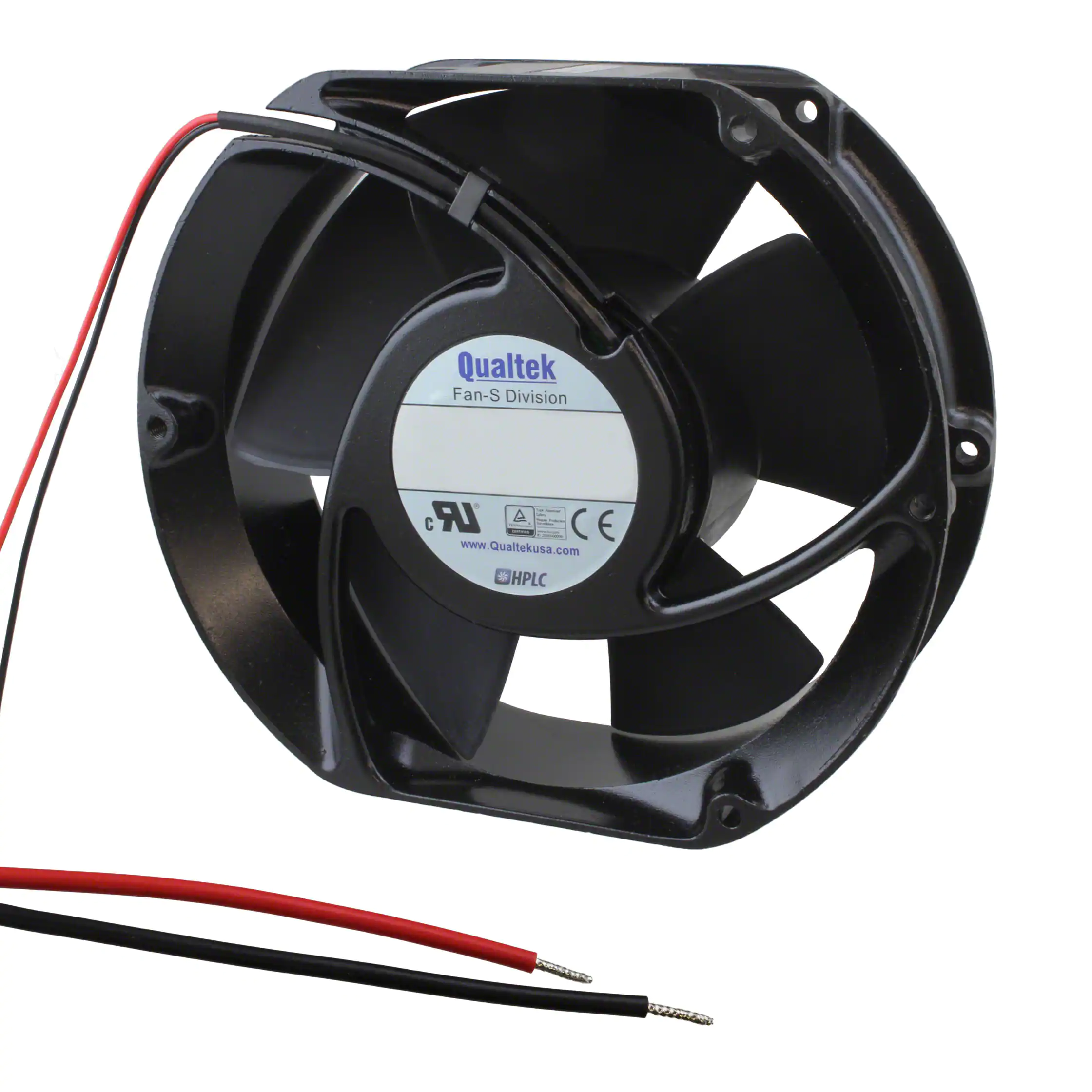

FDD1-17251EBHW32FAN AXIAL 172X51MM 48VDC WIRE |
2 | - |
|
Datenblatt |
HPLC, FDD1-17251 | Bulk | Active | 48VDC | Rectangular/Rounded - 172mm L x 151mm H | 325.0 CFM (9.10m³/min) | 1.134 in H2O (282.5 Pa) | Ball | 2.3 lbs (1 kg) | Tubeaxial | - | 51.00mm | 64.0dB(A) | 37.9 W | CE, cURus, TUV | 4000 RPM | -4 ~ 158°F (-20 ~ 70°C) | 2 Wire Leads | - |
|
17250VA-48R-GA-00FAN AXIAL 172.7X50.8MM 48VDC |
23 | - |
|
Datenblatt |
17250VA | Bulk | Active | 48VDC | Round - 172.7mm Dia | 346.1 CFM (9.69m³/min) | 1.250 in H2O (312.0 Pa) | Ball | 2.1 lbs (952.5 g) | Tubeaxial | - | 50.80mm | 62.0dB | 43.2 W | - | 4600 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | IP69K - Dust Tight, High Temp Water Jets, Waterproof |
|
17250VE-48R-GT-00FAN AXIAL 172.7X50.8MM 48VDC |
18 | - |
|
Datenblatt |
17250VE | Bulk | Active | 48VDC | Round - 172.7mm Dia | 346.1 CFM (9.69m³/min) | 1.250 in H2O (312.0 Pa) | Ball | - | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 50.80mm | 62.0dB(A) | 43.2 W | CE, cULus, VDE | 4600 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | IP68/IP69K - Dust Tight, Water Resistant, Waterproof |
|
MSI1380H48B1+7-BBRFAN IMP MTRZD 133X80.5MM 48VDC |
5 | - |
|
Datenblatt |
MSI1380 | Box | Active | 48VDC | Round - 133mm Dia | 177.1 CFM (4.96m³/min) | 1.780 in H2O (443.4 Pa) | Ball | 1.7 lbs (771.1 g) | Motorized Impellers | Auto Restart, Speed Sensor (Tach), Voltage Control | 80.50mm | 66.0dB(A) | - | CE, cUL, TUV, UL | 4500 RPM | - | 3 Wire Leads | - |
|

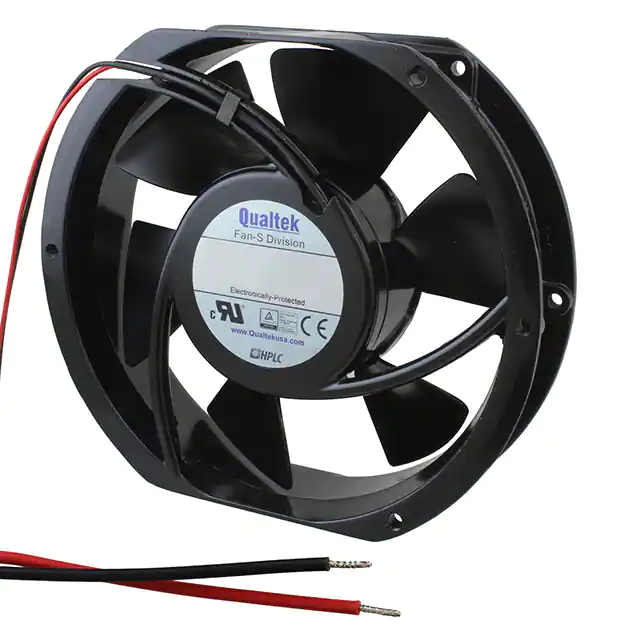

FDD1-17238DBHW42FAN AXIAL 172X38.5MM 24VDC WIRE |
5 | - |
|
Datenblatt |
HPLC, FDD1-17238 | Bulk | Active | 24VDC | Rectangular/Rounded - 172mm L x 151mm H | 310.0 CFM (8.68m³/min) | 1.122 in H2O (279.5 Pa) | Ball | 1.9 lbs (861.8 g) | Tubeaxial | - | 38.50mm | 64.0dB(A) | 33.1 W | CE, cURus, TUV | 4000 RPM | -4 ~ 158°F (-20 ~ 70°C) | 2 Wire Leads | - |
|

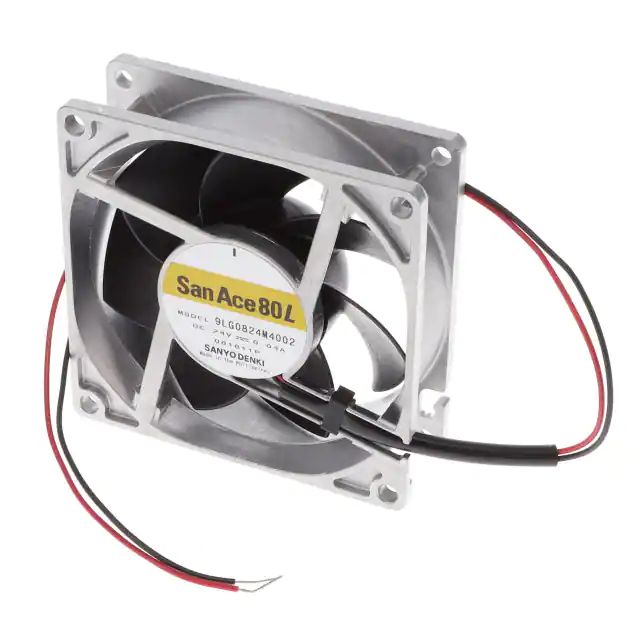

9LG0824M4002FAN AXIAL 80X25MM 24VDC WIRE |
14 | - |
|
Datenblatt |
San Ace 80L | Box | Active | 24VDC | Square - 80mm L x 80mm H | - | - | Ball | - | Tubeaxial | Locked Rotor Protection | 25.00mm | - | 960 mW | - | - | - | 2 Wire Leads | - |
|
17001160AFAN AXIAL 24VDC MSD24K3E2X-E3 |
21 | - |
|
Datenblatt |
- | Bulk | Active | 24VDC | Square - 120mm L x 120mm H | 120.0 CFM (3.36m³/min) | - | Ball | - | Tubeaxial | Auto Restart, Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 38.10mm | 51.8dB(A) | 10.8 W | CE, cUL, UL | 3400 RPM | 14 ~ 158°F (-10 ~ 70°C) | 4 Wire Leads | IP68 - Dust Tight, Waterproof |
|

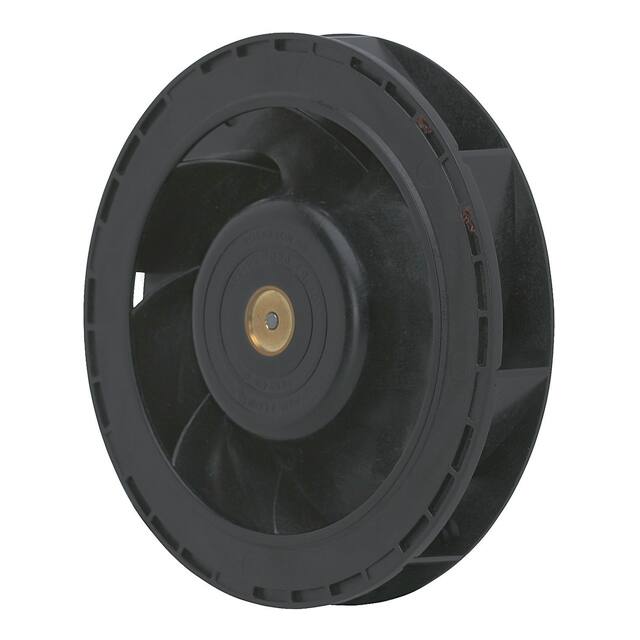

9TM48P4H01FAN IMP MTRZD 100X25MM 48VDC |
17 | - |
|
Datenblatt |
San Ace C100 | Box | Active | 48VDC | Round - 100mm Dia | 62.5 CFM (1.75m³/min) | 2.250 in H2O (560.0 Pa) | Ball | 0.331 lb (150.14 g) | Motorized Impellers | PWM Control, Speed Sensor (Tach) | 25.00mm | 60.0dB(A) | 10.56 W | CSA, TUV, UL | 6400 RPM | -4 ~ 158°F (-20 ~ 70°C) | 4 Wire Leads | - |
|

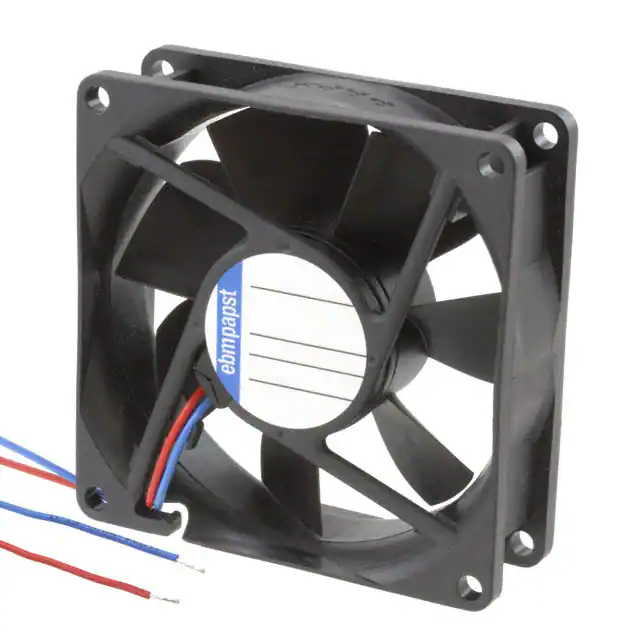

8414NLUFAN AXIAL 80X25.4MM 24VDC WIRE |
9 | - |
|
Datenblatt |
8400NU | Bulk | Active | 24VDC | Square - 80mm L x 80mm H | 19.4 CFM (0.543m³/min) | - | Ball | 0.209 lb (94.8 g) | Tubeaxial | - | 25.40mm | 17.0dB(A) | 800 mW | UL | 1500 RPM | -4 ~ 158°F (-20 ~ 70°C) | 2 Wire Leads | IP68 - Dust Tight, Waterproof |
|
|
GFC0648SS-00E49FAN AXIAL DUAL 60X56MM 48VDC |
3 | - |
|
Datenblatt |
GFC | Box | Not For New Designs | 48VDC | Square - 60mm L x 60mm H | 77.0 CFM (2.16m³/min) | 7.730 in H2O (1925.5 Pa) | Ball | - | Tubeaxial (Dual) | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 56.00mm | 82.0dB(A) | 52.8 W | CE, cURus, TUV | 22300 Front, 24300 Rear | 14 ~ 158°F (-10 ~ 70°C) | 4 Wire Leads per Fan | - |
|
|
17250VA-24R-EA-00FAN AXIAL 172.7X50.8MM 24VDC |
23 | - |
|
Datenblatt |
17250VA | Bulk | Active | 24VDC | Round - 172.7mm Dia | 346.1 CFM (9.69m³/min) | 1.250 in H2O (312.0 Pa) | Ball | - | Tubeaxial | Auto Restart | 50.80mm | 62.0dB | 43.2 W | - | 4600 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
9LG1412M5001FAN AXIAL 140X51MM 12VDC WIRE |
5 | - |
|
Datenblatt |
San Ace 140L | Box | Active | 12VDC | Square - 140mm L x 140mm H | 109.5 CFM (3.07m³/min) | 0.400 in H2O (99.6 Pa) | Ball | 1.8 lb (800.0 g) | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 51.00mm | - | 5.16 W | cURus, TUV | 2600 RPM | -4 ~ 158°F (-20 ~ 70°C) | 3 Wire Leads | - |
|
|
9LG1412A5001FAN AXIAL 140X51MM 12VDC WIRE |
2 | - |
|
Datenblatt |
San Ace 140L | Box | Active | 12VDC | Square - 140mm L x 140mm H | 243.7 CFM (6.82m³/min) | 2.000 in H2O (498.2 Pa) | Ball | 1.8 lb (800.0 g) | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 51.00mm | - | 31.4 W | CSA, TUV, UL | 5700 RPM | -4 ~ 158°F (-20 ~ 70°C) | 3 Wire Leads | - |
|
|
06076EA-12S-E6-0C60X60X76MM, 12VDC, 18,200/16,700 |
20 | - |
|
Datenblatt |
06076EA | Box | Active | 12VDC | Square - 60mm L x 60mm H | 85.7 CFM (2.400m³/min) | 6.620 in H2O (1648.9 Pa) | Ball | - | Tubeaxial (Dual) | Auto Restart, Dual Speed, PWM Control, Speed Sensor (Tach) | 76.00mm | 78.0dB | 67.2 W | CE, cULus, VDE | 18200 RPM Front, 16700 RPM Rear | 14 ~ 140°F (-10 ~ 60°C) | 4 Wire Leads | - |
|

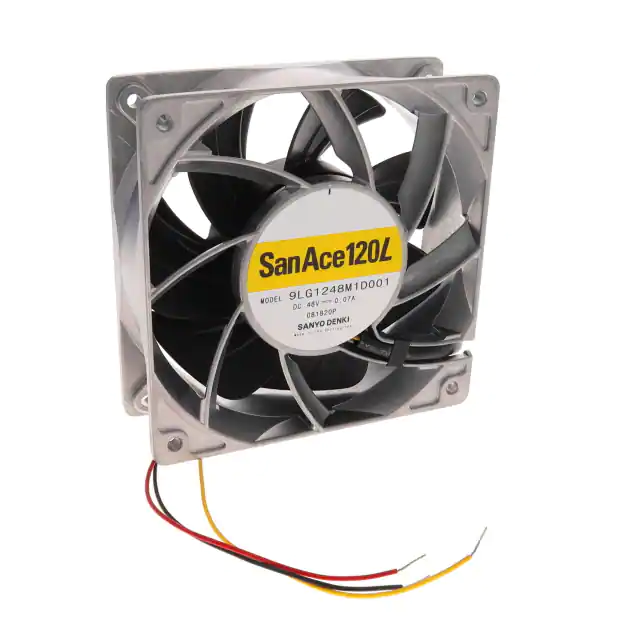

9LG1248M1D001FAN AXIAL 120X38MM 48VDC WIRE |
19 | - |
|
Datenblatt |
San Ace 120L | Box | Active | 48VDC | Square - 120mm L x 120mm H | - | - | Ball | - | Tubeaxial | Locked Rotor Sensor | 38.00mm | - | 3.36 W | - | - | - | 3 Wire Leads | - |
|

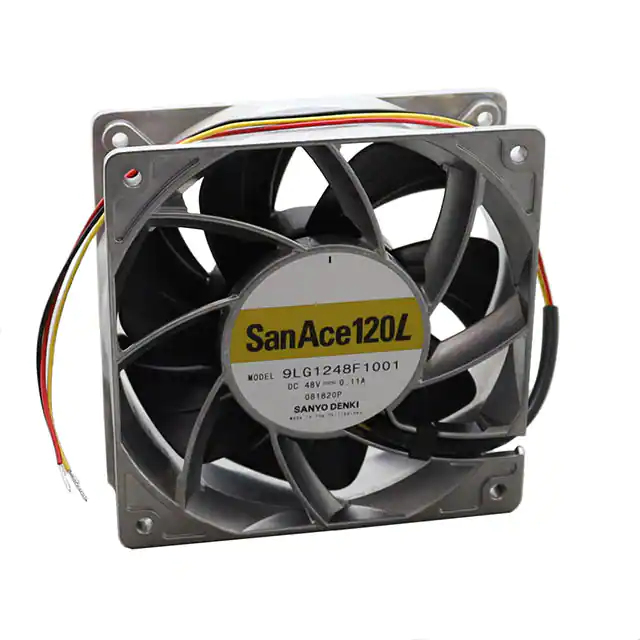

9LG1248F1001FAN AXIAL 120X38MM 48VDC WIRE |
11 | - |
|
Datenblatt |
San Ace 120L | Box | Active | 48VDC | Square - 120mm L x 120mm H | - | - | Ball | - | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 38.00mm | - | 5.28 W | - | - | - | 3 Wire Leads | - |
|
3418N/2HHFAN AXIAL 92X25.4MM 48VDC WIRE |
5 | - |
|
Datenblatt |
3400N | Bulk | Active | 48VDC | Square - 92mm L x 92mm H | - | - | Ball | - | Tubeaxial | Speed Sensor (Tach) | 25.40mm | - | - | - | - | - | 3 Wire Leads | - |
|
9WPA0912P4G00392X25MM, DC, 12V, SPLASH & DUST |
23 | - |
|
Datenblatt |
San Ace 92W | Bulk | Active | 12VDC | Square - 92mm L x 92mm H | 86.5 CFM (2.42m³/min) | 0.510 in H2O (127.0 Pa) | Ball | - | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 25.20mm | 47.7dB(A) | - | - | 5700 RPM | -4 ~ 158°F (-20 ~ 70°C) | 4 Position Rectangular Connector | IP68 - Dust Tight, Waterproof |
