AC-Lüfter
| Foto | Hersteller-Teil # | Verfügbarkeit | Preis | Menge | Datenblatt | Serie | Verpackung | Produktstatus | Spannung - Nenn | Größe/Abmessung | Luftstrom | Statischer Druck | Lager Typ | Gewicht | Lüftertyp | Funktionen | Breite | Geräusch | Leistung (Watt) | Zulassungsstelle | U/min | Betriebstemperatur | Anschluss | Schutzart |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
19028420AFAN AXIAL 120X38MM 110VAC MX2B1 |
277 | - |
|
Datenblatt |
Muffin XL AC | Box | Active | 115VAC | Square - 120mm L x 120mm H | 100.0 CFM (2.80m³/min) | 0.340 in H2O (84.7 Pa) | Ball | 1.03 lbs (467.2 g) | Tubeaxial | - | 38.00mm | 51.0dB(A) | 18.00W | CE, cUL, UL | 3100 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Terminals | - |
|

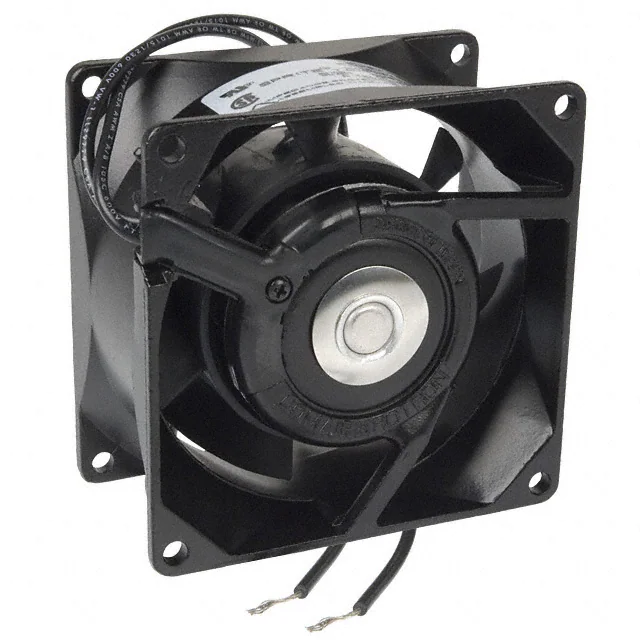

19028268AFAN AXIAL 80X38MM 115VAC SU2B1 |
131 | - |
|
Datenblatt |
Sprite AC | Box | Active | 115VAC | Square - 80mm L x 80mm H | 31.0 CFM (0.868m³/min) | 0.170 in H2O (42.3 Pa) | Ball | 0.573 lb (260.00 g) | Tubeaxial | - | 38.00mm | 32.0dB(A) | 13.00W | CE, cUL, UL | 2800 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | IP44 |
|

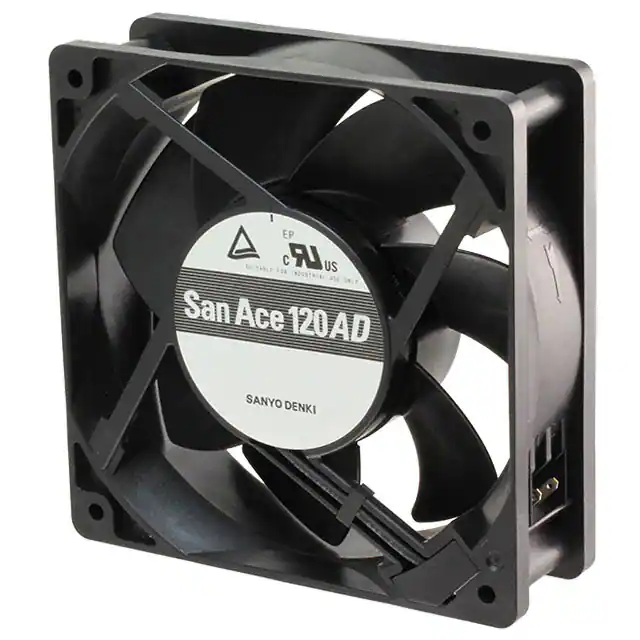

9AD1201H12FAN 120X38MM 90/264VAC |
305 | - |
|
Datenblatt |
San Ace 120AD | Box | Active | 100 ~ 240VAC | Square - 120mm L x 120mm H | 106.0 CFM (2.97m³/min) | 0.340 in H2O (84.7 Pa) | Ball | 0.639 lb (289.85 g) | Tubeaxial | - | 38.00mm | 42.0dB(A) | 4.40W | CE, CSA, PSE, TUV, UL | 3250 RPM | -4 ~ 167°F (-20 ~ 75°C) | 2 Terminals | - |
|

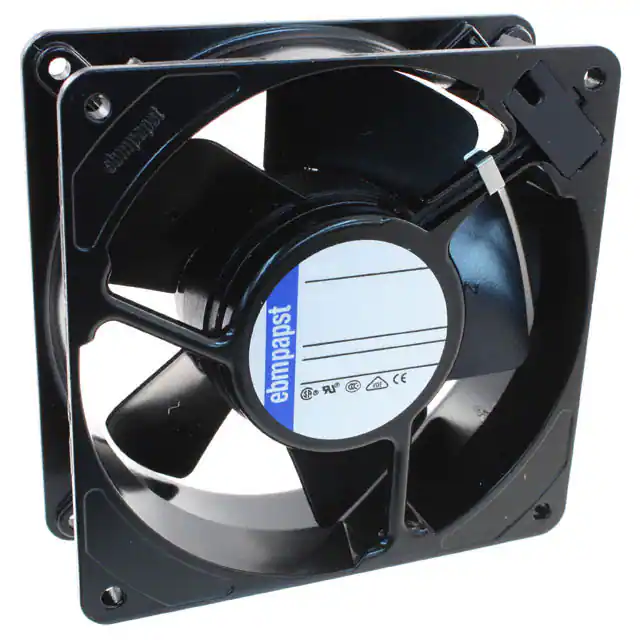

4606ZFAN AXIAL 119X38MM 115VAC TERM |
0 | - |
|
Datenblatt |
4000Z | Bulk | Active | 115VAC | Square - 119mm L x 119mm H | 106.0 CFM (2.97m³/min) | - | Ball | 1.2 lbs (544.3 g) | Tubeaxial | - | 38.00mm | 45.0dB(A) | 18.00W | CE, CSA, UL, VDE | 3100 RPM | -40 ~ 185°F (-40 ~ 85°C) | 2 Terminals | - |
|
RL90-18/00FAN BLWR FLATPAK 121X37MM 115VAC |
65 | - |
|
Datenblatt |
RL90N | Bulk | Active | 115VAC | Square - 121mm L x 121mm H | 24.7 CFM (0.692m³/min) | - | Sleeve | 1.5 lbs (680.4 g) | Blower, Flatpak | - | 37.00mm | 60.0dB(A) | 19.50W | - | 2550 RPM | 14 ~ 140°F (-10 ~ 60°C) | 2 Wire Leads | - |
|

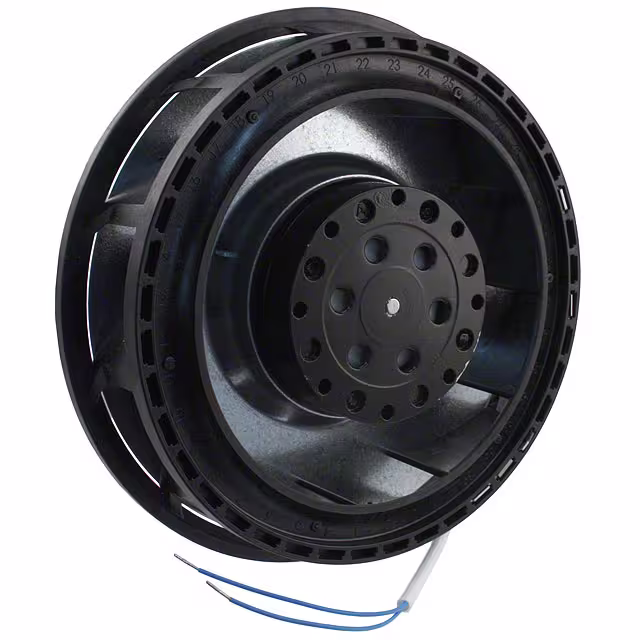

RER125-19/56FAN IMP MTRZD 138X40MM 230VAC |
225 | - |
|
Datenblatt |
RER125 | Box | Active | 230VAC | Round - 138mm Dia | 61.2 CFM (1.71m³/min) | - | Ball | 1.1 lbs (499.0 g) | Motorized Impellers | - | 40.00mm | 65.0dB(A) | 19.00W | CE, CSA, UL, VDE | 2600 RPM | -22 ~ 140°F (-30 ~ 60°C) | 2 Wire Leads | - |
|

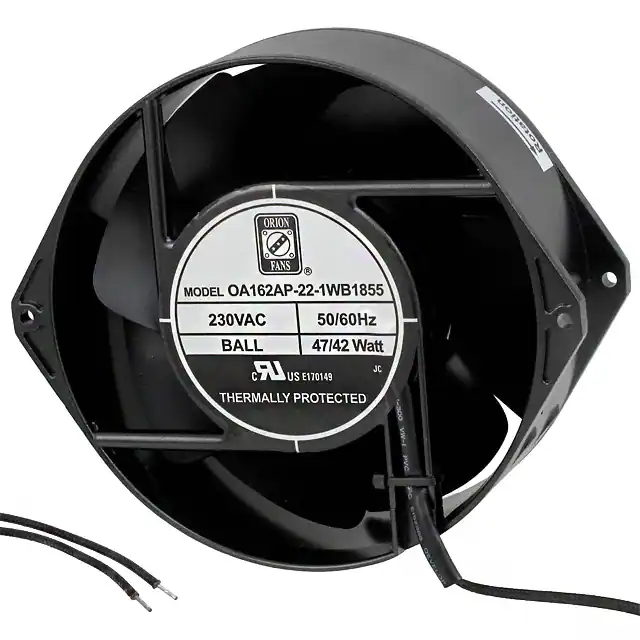

OA162AP-22-1WB1855FAN AXIAL 172X55MM 230VAC WIRE |
30 | - |
|
Datenblatt |
OA162 | Box | Active | 230VAC | Rectangular/Rounded - 172mm L x 150mm H | 210.0 CFM (5.88m³/min) | 0.420 in H2O (104.6 Pa) | Ball | 2.7 lbs (1.2 kg) | Tubeaxial | Thermal Overload Protector (TOP) | 55.00mm | 54.0dB | 42.00W | cURus | 3200 RPM | -22 ~ 176°F (-30 ~ 80°C) | 2 Wire Leads | IP55 - Dust Protected, Water Resistant |
|
RL90-18/50FAN BLWR FLATPAK 121X37MM 230VAC |
65 | - |
|
Datenblatt |
RL90 | Bulk | Active | 230VAC | Square - 121mm L x 121mm H | 23.5 CFM (0.658m³/min) | - | Sleeve | 1.5 lbs (680.4 g) | Blower, Flatpak | - | 37.00mm | 60.0dB(A) | 20.00W | - | 2450 RPM | 14 ~ 122°F (-10 ~ 50°C) | 2 Wire Leads | - |
|

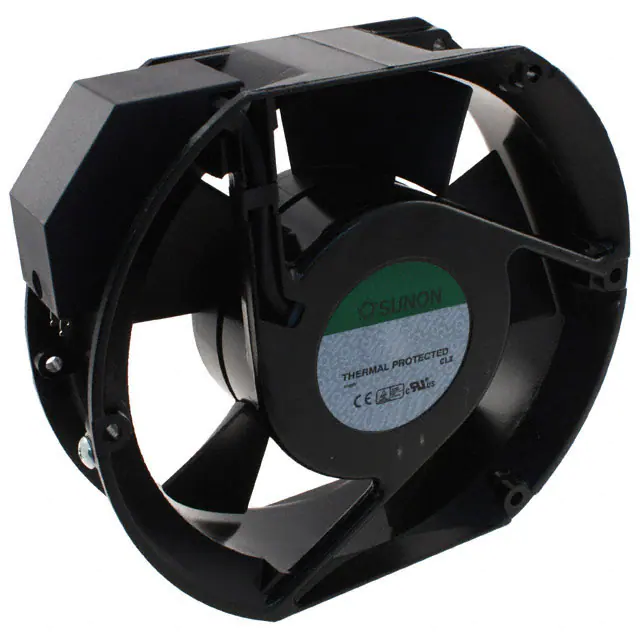

A2175-HBT.TC.GNFAN AXIAL 171.5X51MM 220/240VAC |
2,740 | - |
|
Datenblatt |
A | Bulk | Active | 240VAC | Rectangular/Rounded - 171.5mm L x 151.5mm H | 239.0 CFM (6.69m³/min) | 0.690 in H2O (171.8 Pa) | Ball | 2 lbs (907.2 g) | Tubeaxial | - | 51.00mm | 58.0dB(A) | 26.00W | CE, CUR, TUV, UL | 3200 RPM | 14 ~ 176°F (-10 ~ 80°C) | 2 Terminals | - |
|

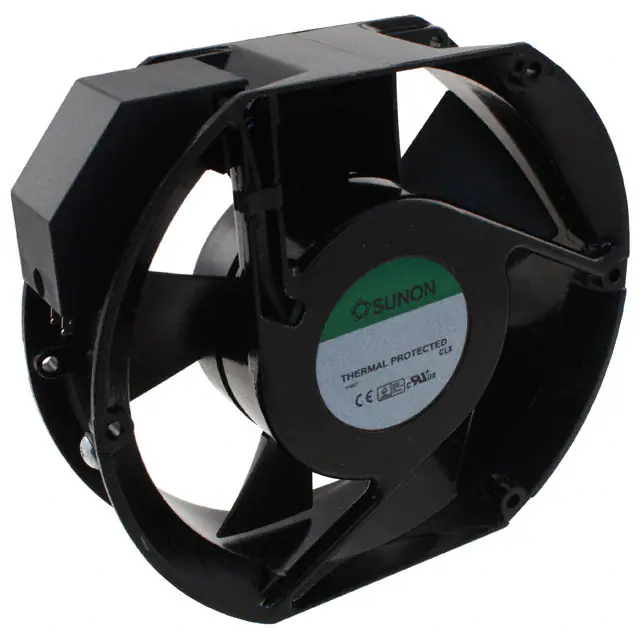

A1175-HBT.TC.GNFAN AXIAL 171X51MM 115VAC TERM |
763 | - |
|
Datenblatt |
A | Bulk | Active | 115VAC | Rectangular/Rounded - 171.5mm L x 151mm H | 239.0 CFM (6.69m³/min) | 0.690 in H2O (171.8 Pa) | Ball | 2 lbs (907.2 g) | Tubeaxial | - | 51.00mm | 58.0dB(A) | 27.00W | CE, CUR, TUV, UL | 3200 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Terminals | - |
|

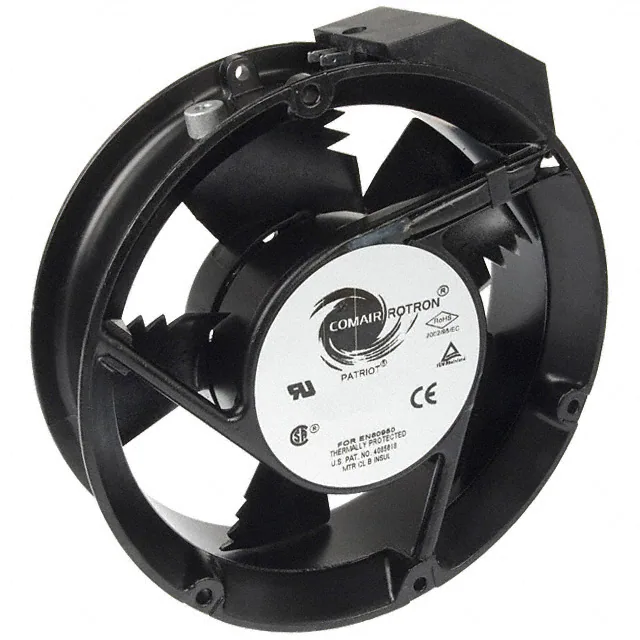

19028254AFAN AXIAL 171.5X50.8MM PT2B3 |
631 | - |
|
Datenblatt |
Patriot AC | Box | Active | 115VAC | Round - 171.5mm Dia | 230.0 CFM (6.44m³/min) | 0.772 in H2O (192.3 Pa) | Ball | 1.8 lbs (816.5 g) | Tubeaxial | - | 50.80mm | 54.0dB(A) | 31.00W | CE, cUL, UL | 3400 RPM | - | 2 Terminals | - |
|

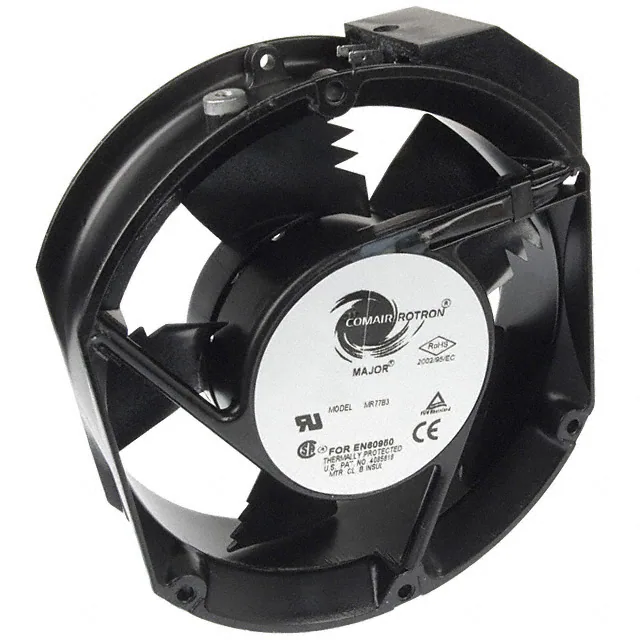

19028309AFAN AXIAL 172X50.8MM 230V MR77B3 |
210 | - |
|
Datenblatt |
Major AC | Box | Active | 230VAC | Rectangular/Rounded - 172mm L x 150mm H | 231.0 CFM (6.47m³/min) | 0.769 in H2O (191.5 Pa) | Ball | 1.8 lbs (816.5 g) | Tubeaxial | - | 50.80mm | 56.6dB(A) | 30.00W | CE, cUL, UL | 3400 RPM | - | 2 Terminals | - |
|

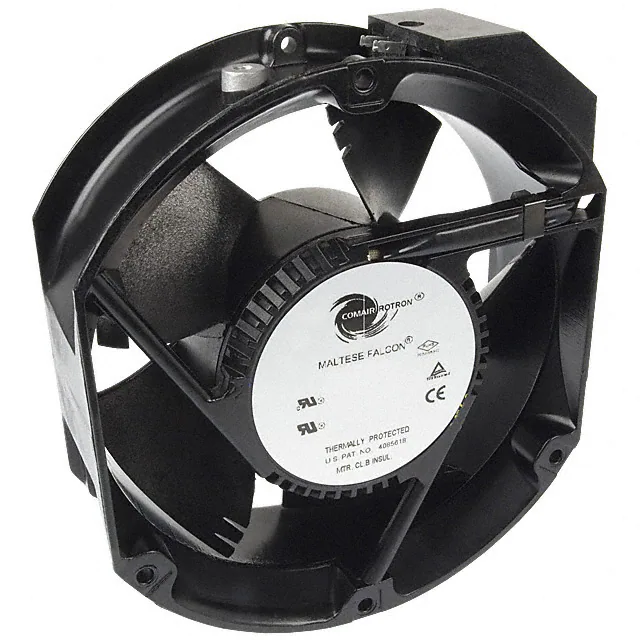

19031844AFAN AXIAL 172X55MM 230VAC MA77B3 |
307 | - |
|
Datenblatt |
Maltese AC | Box | Active | 230VAC | Rectangular/Rounded - 172mm L x 150mm H | 300.0 CFM (8.40m³/min) | 0.840 in H2O (209.2 Pa) | Ball | 2.3 lbs (1 kg) | Tubeaxial | - | 55.00mm | 59.0dB(A) | 41.40W | CE, cUL, UL | 3400 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Terminals | - |
|
|
19028245AFAN AXIAL 172X50.8MM 115V MR2B3 |
226 | - |
|
Datenblatt |
Major AC | Box | Active | 115VAC | Rectangular/Rounded - 172mm L x 150mm H | 235.0 CFM (6.58m³/min) | 0.769 in H2O (191.5 Pa) | Ball | 1.8 lbs (816.5 g) | Tubeaxial | - | 50.80mm | 55.8dB(A) | 31.00W | CE, cUL, UL | 3400 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Terminals | - |
|
|
19028312AFAN AXIAL 171.5X50.8MM PT77B3 |
339 | - |
|
Datenblatt |
Patriot AC | Bulk | Active | 230VAC | Round - 171.5mm Dia | 235.0 CFM (6.58m³/min) | 0.772 in H2O (192.3 Pa) | Ball | 1.8 lbs (816.5 g) | Tubeaxial | - | 50.80mm | 54.0dB(A) | 30.00W | CE, cUL, UL | 3400 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Terminals | - |
|
AC3200JHFAN AXIAL 92X38MM 85/265VAC WIRE |
127 | - |
|
Datenblatt |
Green Tech ACmaxx, AC3200J | Box | Active | 115VAC | Square - 92mm L x 92mm H | 86.0 CFM (2.41m³/min) | - | Ball | 0.716 lb (324.77 g) | Tubeaxial | Electronic Commutation (EC), Locked Rotor Protection | 38.00mm | 55.0dB(A) | 11.00W | CCC, CE, CSA, UL, VDE | 6800 RPM | -4 ~ 158°F (-20 ~ 70°C) | 2 Wire Leads | IP20 |
|

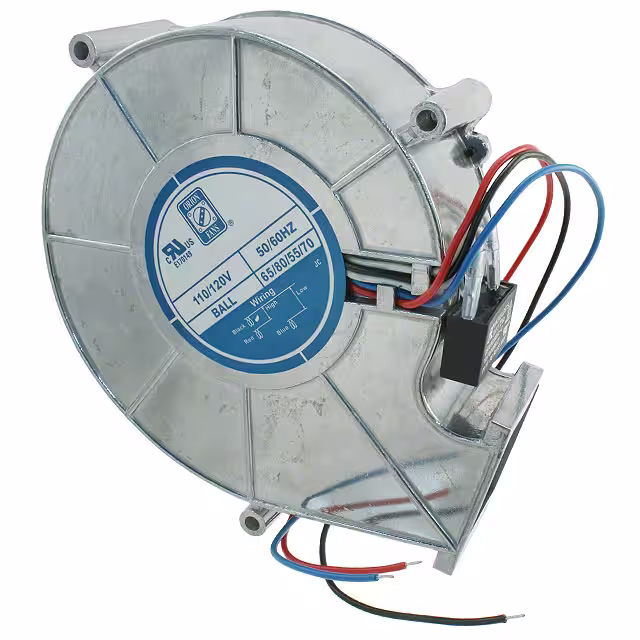

OAB908AN-11-1/2FAN BLOWER 183X70MM 120VAC WIRE |
214 | - |
|
Datenblatt |
OAB908 | Box | Active | 115VAC | Rectangular/Rounded - 183mm L x 189.8mm H | 75.0 ~ 100.0 CFM (2.10 ~ 2.80m³/min) | 1.40/1.80 in H2O (348.7/448.4 Pa) | Ball | - | Blower | Dual Speed, Thermal Overload Protector (TOP) | 70.00mm | 55/68dB | 65.0W, 80.0W | cURus | 2400/3100 RPM | -4 ~ 167°F (-20 ~ 75°C) | 3 Wire Leads | - |
|

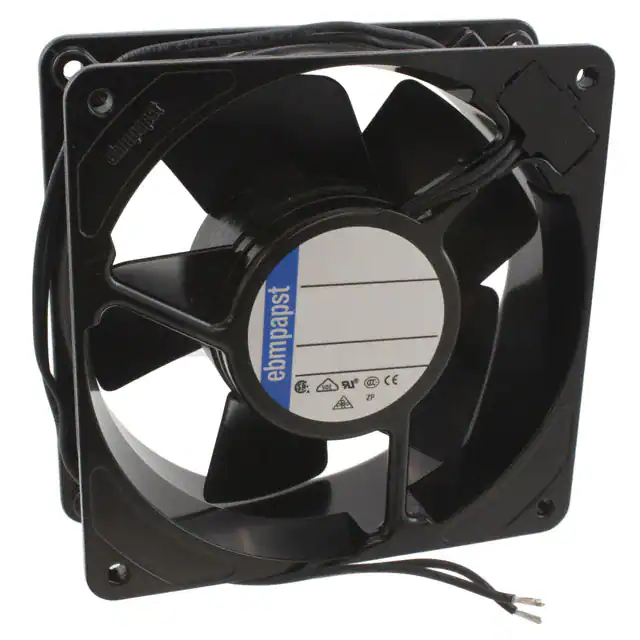

4656ZWUFAN AXIAL 119X38MM 230VAC WIRE |
86 | - |
|
Datenblatt |
4000ZU | Bulk | Active | 230VAC | Square - 119mm L x 119mm H | 105.9 CFM (2.97m³/min) | 0.321 in H2O (80.0 Pa) | Ball | - | Tubeaxial | - | 38.00mm | 42.0dB(A) | 17.00W | CCC, CE, CSA, UL, VDE | 3100 RPM | -40 ~ 176°F (-40 ~ 80°C) | 2 Wire Leads | IP65 - Dust Tight, Water Resistant |
|

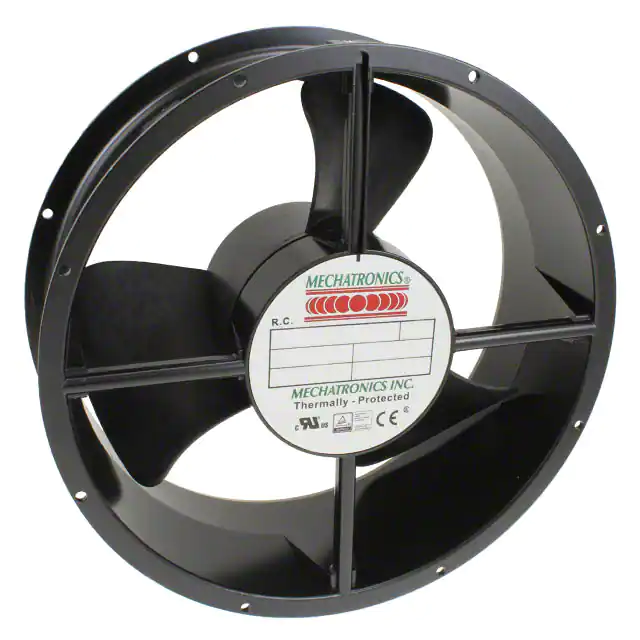

UF25GC12-BTHRFAN AXIAL 254X89MM 115VAC |
412 | - |
|
Datenblatt |
UF25GC | Bulk | Active | 115VAC | Round - 254mm Dia | 550.0 CFM (15.40m³/min) | 0.400 in H2O (99.6 Pa) | Ball | 4.1 lbs (1.9 kg) | Tubeaxial | Permanent Split Capacitor Motor, Thermal Overload Protector (TOP) | 89.00mm | 55.0dB(A) | 33.00W | CE, cUL, TUV, UL | 1650 RPM | -40 ~ 158°F (-40 ~ 70°C) | 2 Terminals | - |
|
|
UF25GC23-BTHRFAN AXIAL 254X89MM 230VAC |
71 | - |
|
Datenblatt |
UF25GC | Bulk | Active | 230VAC | Round - 254mm Dia | 550.0 CFM (15.40m³/min) | 0.400 in H2O (99.6 Pa) | Ball | 4.1 lbs (1.9 kg) | Tubeaxial | Permanent Split Capacitor Motor, Thermal Overload Protector (TOP) | 89.00mm | 55.0dB(A) | 33.00W | CE, cUL, TUV, UL | 1650 RPM | -40 ~ 158°F (-40 ~ 70°C) | 2 Terminals | - |
