The MCP79401 is a low-power I²C RTCC that tracks seconds, minutes, hours, day-of-week, date, month, and year, with leap-year compensation up to year 2399 and selectable 12/24-hour formats. It is designed for embedded systems that require reliable time retention and event logging.

A key feature is its automatic switchover to battery backup. When the primary supply is lost and a backup source is present, timekeeping and SRAM contents are maintained, and the device logs the switch events using a power-fail timestamp. The protected EEPROM (8 bytes) supports storing critical identifiers or configuration data with a robust write-unlock sequence.

Variant note: MCP79401 includes a factory-programmed EUI-48™ identifier. MCP79400 is unprogrammed, and MCP79402 provides a factory-programmed EUI-64™.

MCP79401-I/SN indicates the Industrial temperature version in SN package, which is an 8-lead SOIC (3.90 mm body) surface-mount package. Always confirm the land pattern and mechanical dimensions with the official package drawing.

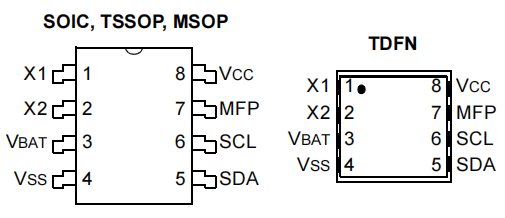

The SOIC-8 pinout integrates the crystal connections, I²C interface, backup supply, and a multifunction output pin for alarms or clock output.

• X1 / X2: 32.768 kHz crystal pins
• VBAT: Backup battery supply input
• VSS: Ground
• VCC: Main power supply
• MFP: Multifunction open-drain output (alarm / clock output / GPIO)
• SCL: I²C serial clock
• SDA: I²C serial data

Alternative RTC devices are typically selected based on interface, backup requirements, package constraints, and firmware compatibility. The following parts are commonly considered in RTC designs:

• MCP79400 - Same family; protected EEPROM unprogrammed
• MCP79402 - Same family; includes factory-programmed EUI-64™
• DS1307 - I²C RTC used in basic timekeeping designs (verify feature differences and supply ranges)
• PCF8563 - Low-power I²C RTC (confirm register map and backup scheme)
• DS3231 - I²C RTC with integrated oscillator/temperature compensation (different footprint/behavior)

Note: Always validate register map, timing behavior, supply ranges, and PCB footprint before approving any substitute for production.
